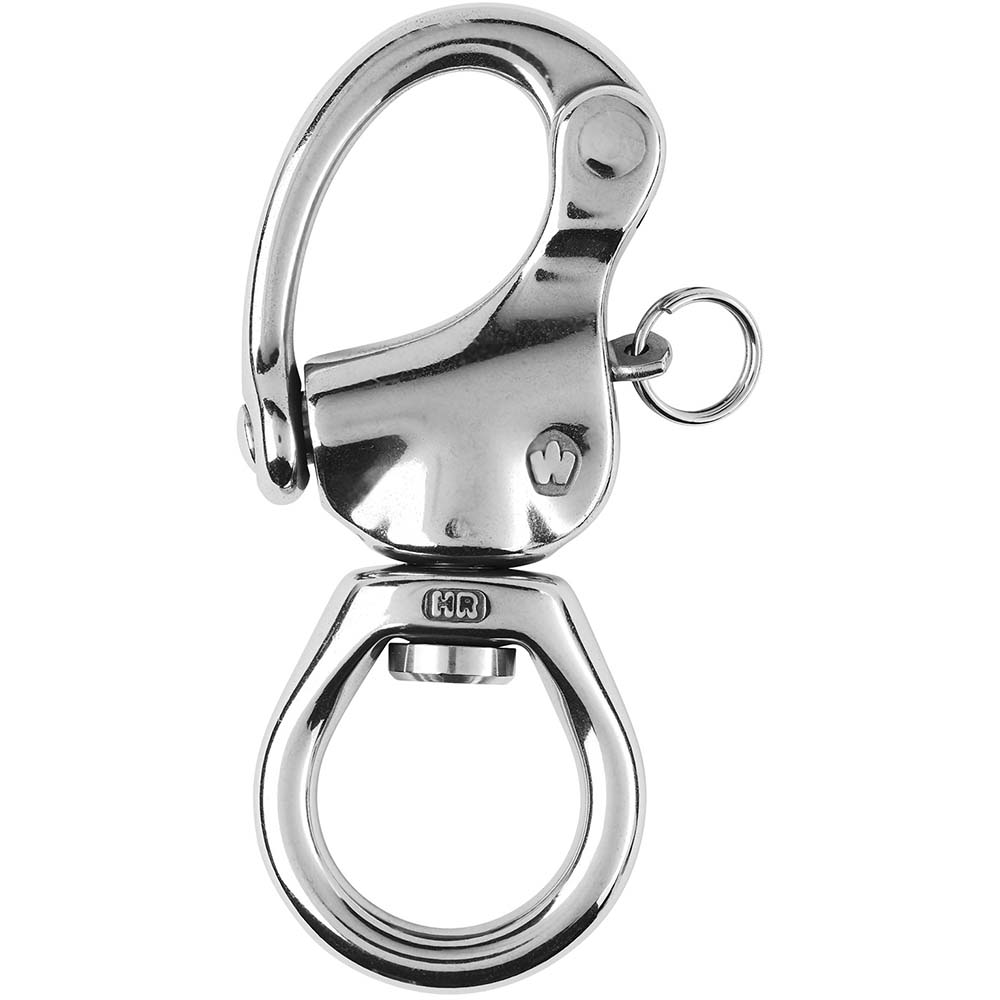

Wichard HR Snap Shackle – Large Bail – Length 80mm

93147
Wichard Marine

$104.30 $59.14

4 in stock
Qty :

Description

HR Snap Shackle – Large Bail – Length 80mm

Features:

  • HR Forged snap shackle (Grade 17.4 PH stainless steel)  with large eye
  • The large eye allows attaching several ropes
  • Free rotation of the snap shackle thanks to the swivel eye
  • The plunger pin is set captive into the hook and cannot become detached
  • Excellent working and breaking loads
  • Easy to open by pulling the plunger pin (possibility to attach a lanyard)

Applications:

  • Snap shackle applications
  • Applications requiring a free rotation of the snap shackle (for a better sail orientation)

Specifications:

  • Materials HR 17.4 PH stainless steel grade
  • Length (inch) 3-5/32″
  • Working load (lb) 2110
  • Breaking load (lb) 4400
  • Weight (lb) 0.154

Dimensions (see 2nd image):

  • A (inch) 5/8″
  • B (inch) 3/4″

Additional information

Weight 0.15 lbs
Dimensions 6 × 2 × 1 in
Model Number 02373
UPC 768536023732
