Wichard HR Snap Shackle With Thimble Eye – 110mm Length – 4-21/64″

97657
Wichard Marine

$132.50 $75.13

0 in stock
Qty :

Description

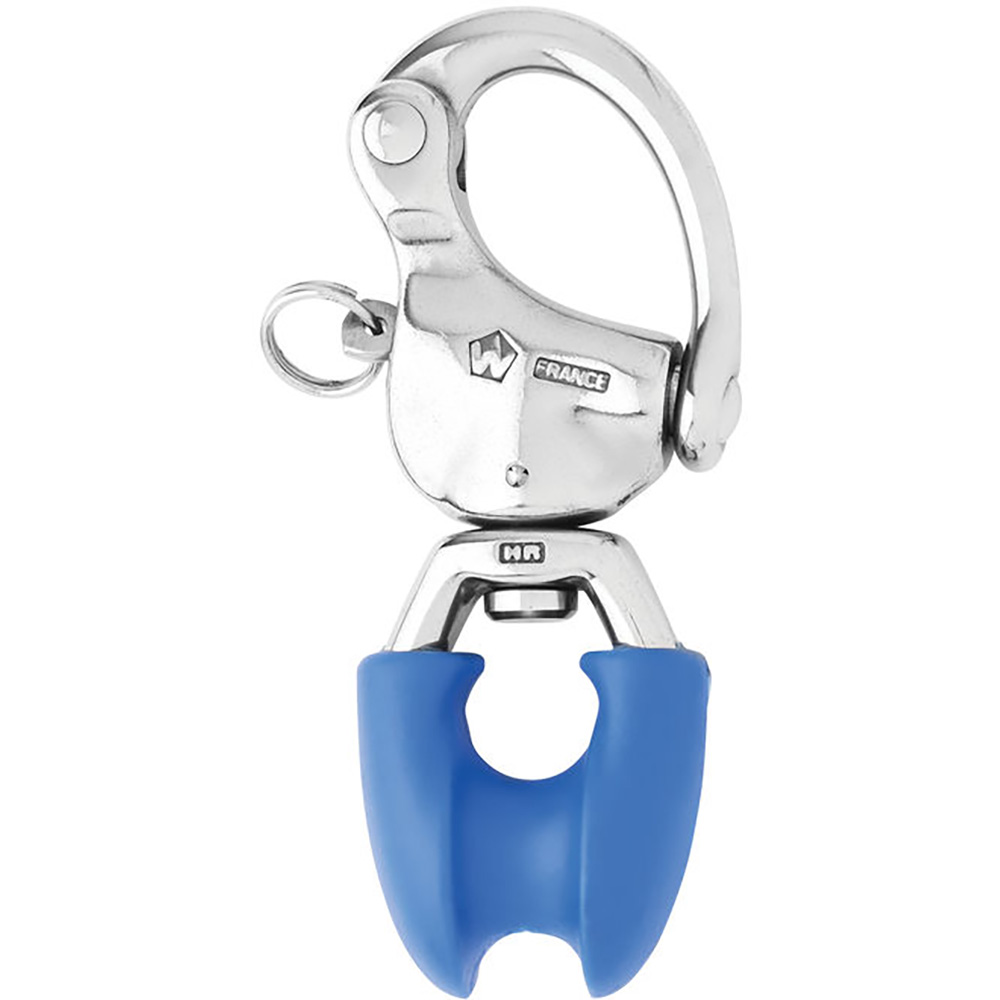

HR Snap Shackle With Thimble Eye – 110mm Length – 4-21/64″

Features:

  • HR Forged snap shackle (Grade 17.4 PH stainless steel) with thimble eye
  • Allows to splice the halyard directly onto the snap shackle (without using a thimble)
  • Avoids the wear of the ropes
  • Free rotation of the snap shackle thanks to the swivel eye
  • The plunger pin is set captive into the hook and cannot become detached
  • Excellent working and breaking loads > Easy to open by pulling the plunger pin (possible to attach a lanyard)

Applications:

  • Snap shackle applications
  • Allows to splice the halyard
  • Applications requiring a free rotation of the snap shackle (for a better sail orientation)

Specifications:

  • Materials: HR 17.4 PH stainless steel grade
  • Working load: (lb) 2820 / (kg) 1280
  • Breaking load: (lb) 5290 / (kg) 2400

Dimensions:

  • A: (inch) 53/64″ / (mm) 110
  • B: (inch) 35/64″ / (mm) 21
  • Length: (inch) 4 21/64″ / (mm) 14

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
  • High Resistance (HR)

*Sold as an Individual

Quick Guide Litreture

Brochure Litreture

Additional information

Model Number 02495
