Description

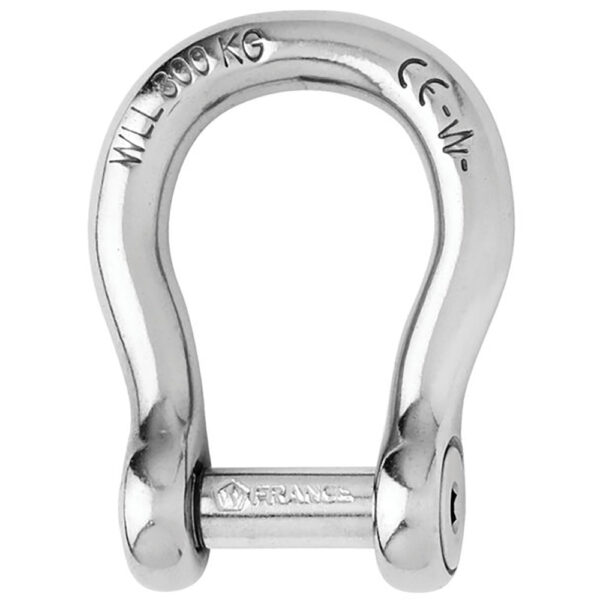

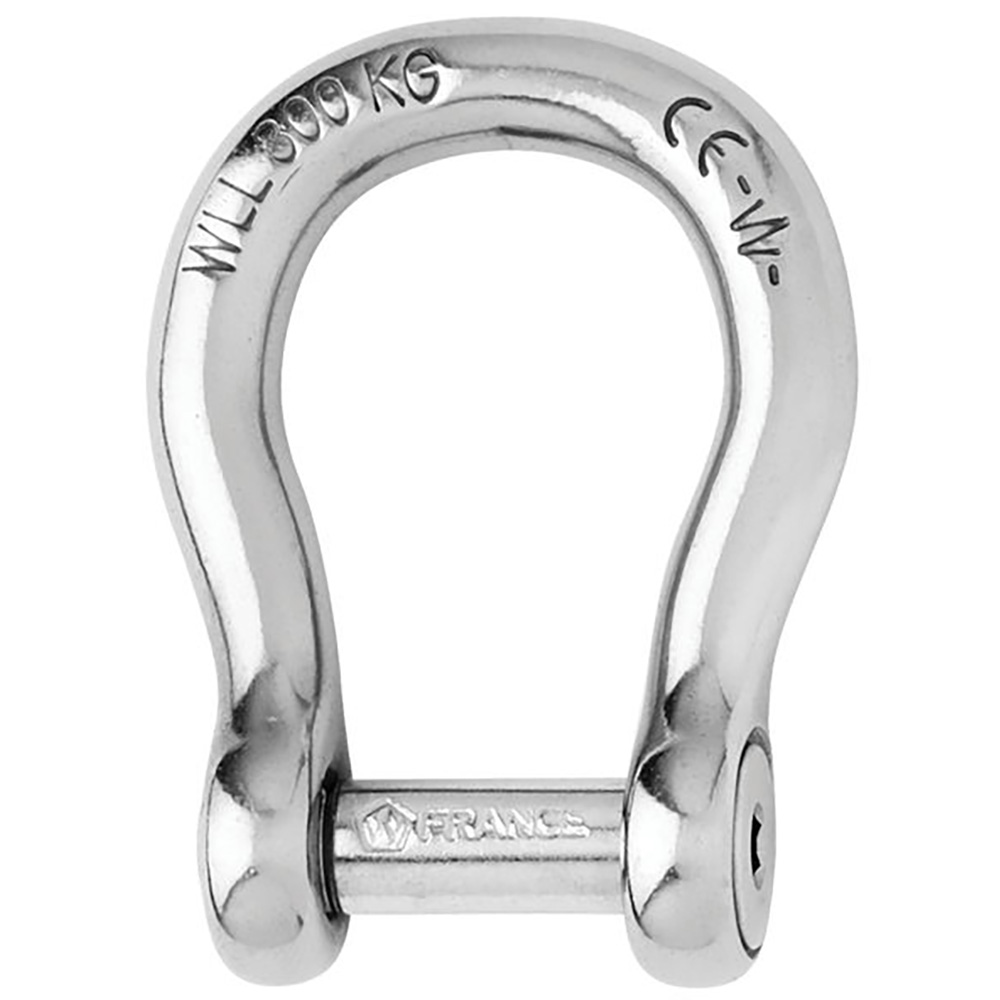

Self-Locking Allen Head Pin Bow Shackle – 6mm Diameter – 1/4″
Features:
- Self-locking twisted shackle with allen head pin forged in grade 316L stainless steel
- The pin is locked into one of the indentations
- The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
- WLL: only for industrial applications (lifting i.e…)
Applications:
- Ideal to link chains and anchor
- On the halyard, avoids damaging the sails
- To be used when the clutter is reduced
- To be used when ample room is required
Specifications:
- Materials: 316 stainless steel grade
- Working load: (lb) 1320 / (kg) 600
- WLL: (lb) 660 / (kg) 300
- Breaking load: (lb) 3300 / (kg) 1500
- Weight: (lb) 0.064 / (g) 29
Dimensions:
- A: (inch) 1 1/16″ / (mm) 27
- B: (inch) 15/32″ / (mm) 12
- C: (inch) 15/64″ / (mm) 6
- D: (inch) 15/32″ / (mm) 12
- D diameter: (inch) 15/64″ / (mm) 6
- E: (inch) 13/64″ / (mm) 5
- F: (inch) 3/64″ / (mm) 1
- M: (inch) 1 17/64″ / (mm) 32
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
WLL = Breaking load / 5
*Sold as an Individual
