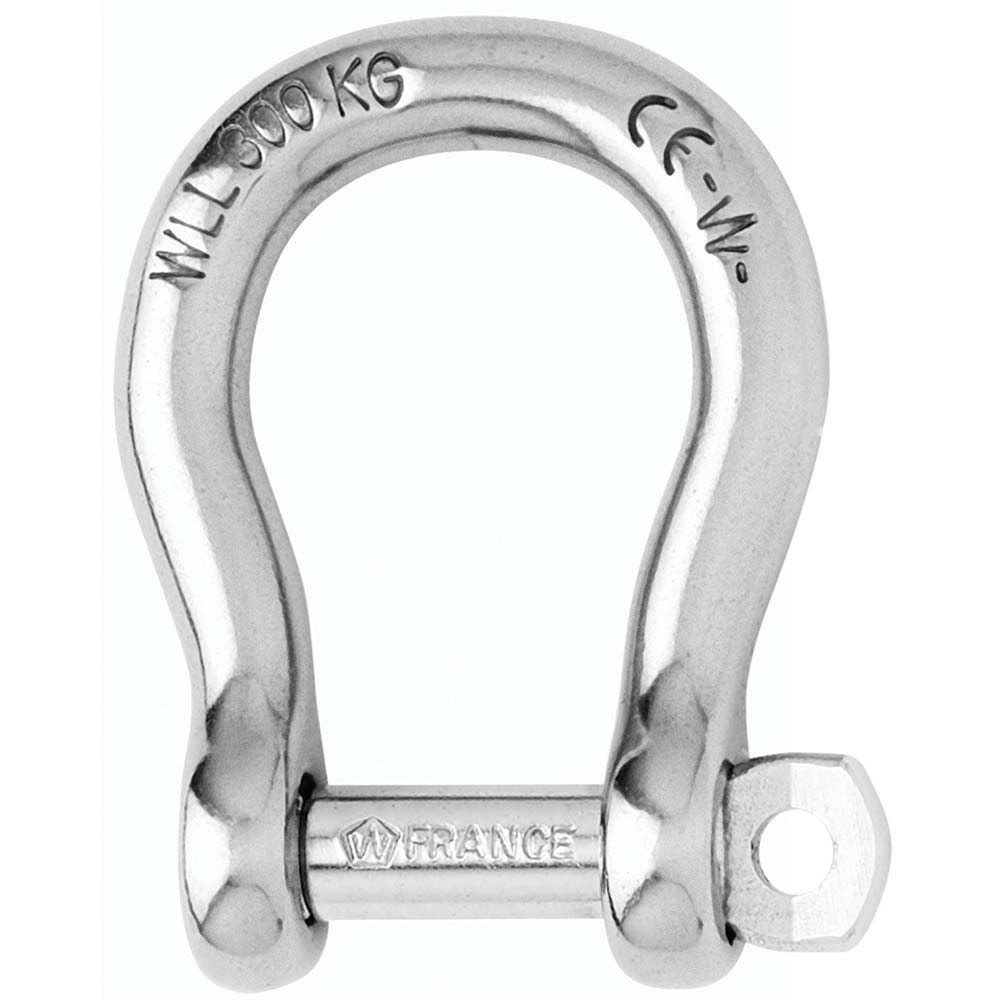

Wichard Self-Locking Bow Shackle – Diameter 4mm – 5/32″

93102
Wichard Marine

$17.20 $9.75

8 in stock
Qty :
,

Description

Self-Locking Bow Shackle – Diameter 4mm – 5/32″

Features:

  • Self-locking bow shackle forged in grade 316L stainless steel
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking and batch number

Applications:

  • To be used when ample room is required
  • Possibility to attach several lines or cables

Specifications:

  • Materials 316 stainless steel grade
  • Working load (lb) 700
  • WLL (lb) 300
  • Breaking load (lb) 1540
  • Weight (lb) 0.02

Dimensions (see 2nd image):

  • A (inch) 45/64″
  • B (inch) 5/16″
  • C (inch) 5/32″
  • D (inch) 5/16″
  • D diameter (inch) 5/32″
  • M (inch) 53/64″

Additional information

Weight 0.05 lbs
Dimensions 6 × 2 × 1 in
Model Number 01241
UPC 768536012415
