Description

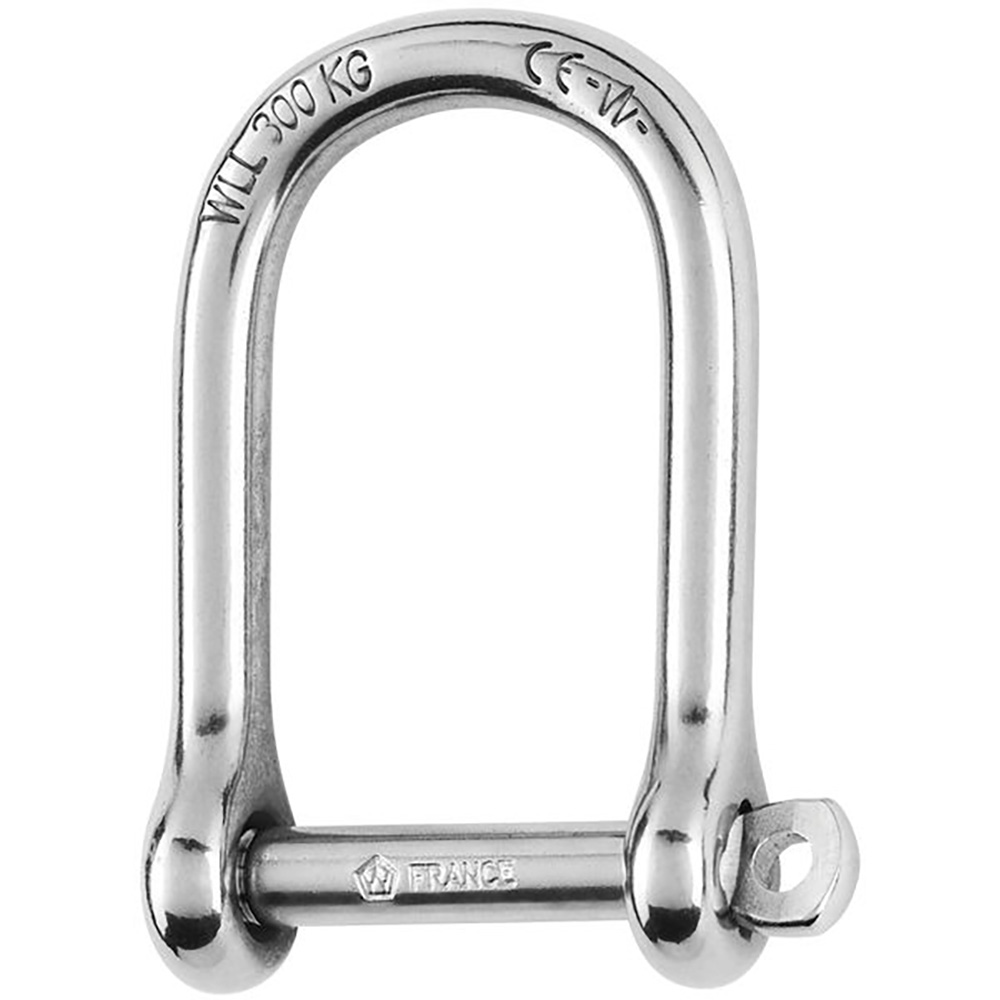

Self-Locking Large Opening Shackle – 10mm Diameter – 13/32″
Features:
- Self-locking large shackle forged in grade 316L stainless steel
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
- WLL: only for industrial applications (lifting i.e…)
- CE marking
Applications:
- For applications where a large opening shackle is required
Specifications:
- Materials: 316 stainless steel grade
- Working load: (lb) 2820 / (kg) 1280
- WLL: (lb) 1760 / (kg) 800
- Breaking load: (lb) 8810 / (kg) 4000
- Weight: (lb) 0.28 / (kg) 4000
Dimensions:
- A: (inch) 2 53/64″ / (mm) 72
- B: (inch) 1 37/64″ / (mm) 40
- C; (inch) 25/64″ / (mm) 10
- D: (inch) 53/64″ / (mm) 21
- D diameter: (inch) 25/64″ / (mm) 10
- E: (inch) 25/64″ / (mm) 10
- G: (inch) 2 51/64″ / (mm) 71
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.
WLL = Breaking load / 5
*Sold as an Individual
