Description

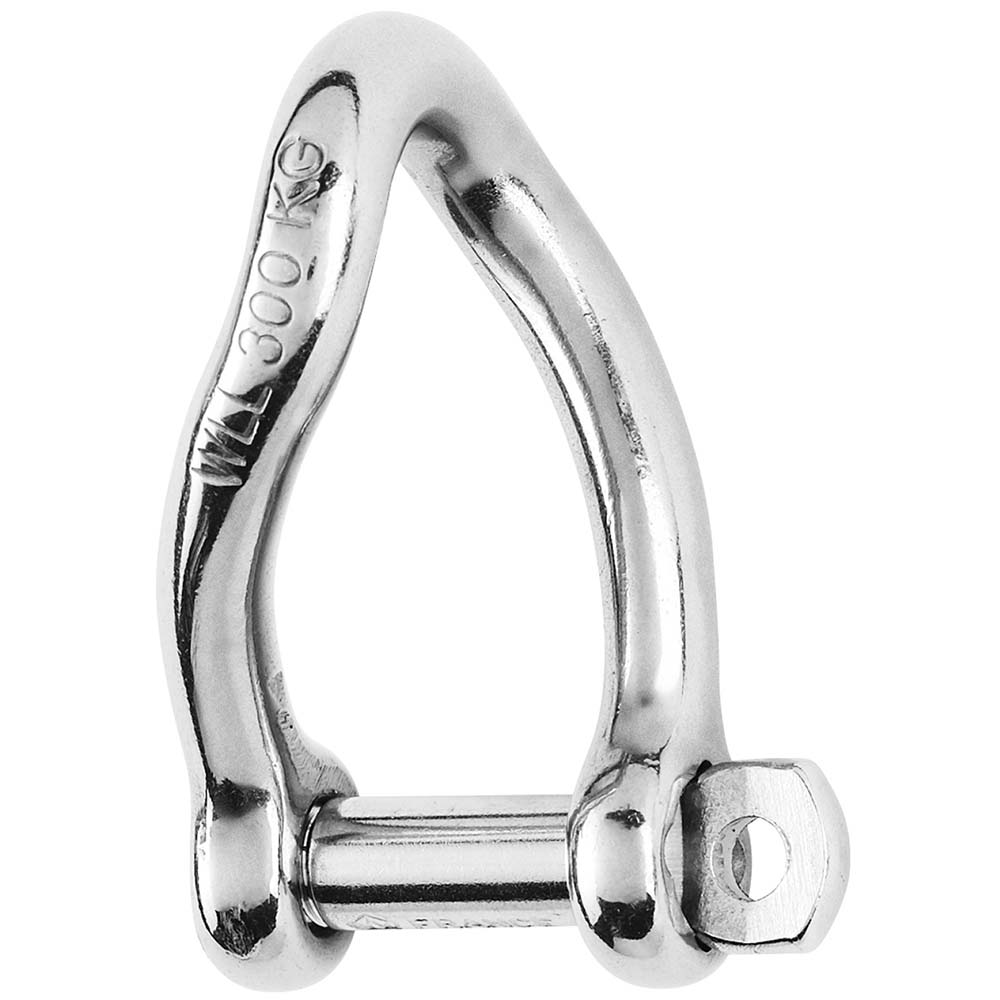

Self-Locking Twisted Shackle – Diameter 6mm – 1/4″
Features:
- Self-locking twisted shackle forged in grade 316L stainless steel
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
Applications:
- Perfect for application where a 90° angle twist setup is required
- Often used to attach an unarticulated part (block on a rail) or on purchases
Specifications:
- Materials 316 stainless steel grade
- Working load (lb) 1320
- Breaking load (lb) 3300
- Weight (lb) 0.06
Dimensions (see 2nd page):
- A (inch) 1-3/16″
- B (inch) 15/32″
- C (inch) 15/64″
- D (inch) 15/32″
- D diameter (inch) 15/64″
- E (inch) 13/64″
- F (inch) 1-49/64″
