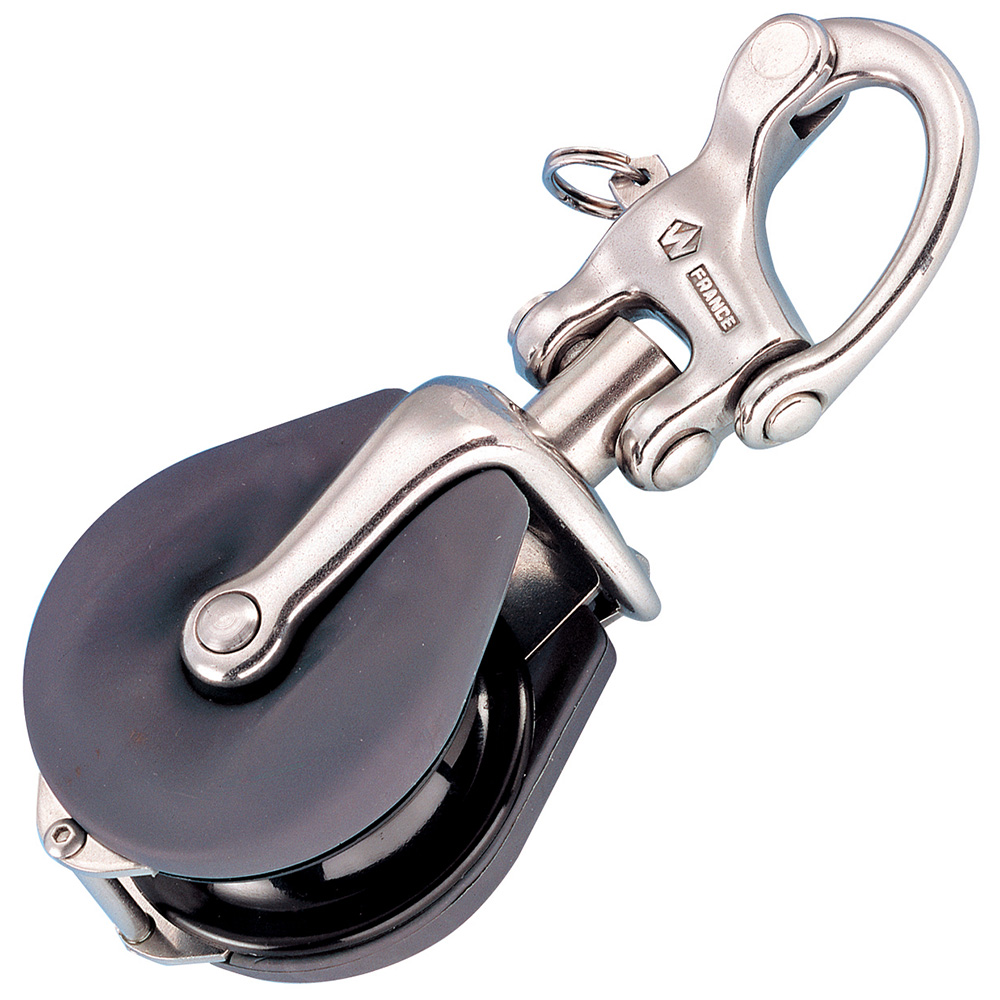

Wichard Snatch Block w/Snap Shackle – Max Rope Size 18mm (23/32″)

99750
Wichard Marine

$489.60 $277.61

2 in stock
Qty :
,

Description

Snatch Block with Snap Shackle – Max Rope Size 18mm (23/32″)

Features:

  • Free rotation thanks to snap shackle
  • Very strong closing system
  • Easy opening by simply pulling on the plunger pin
  • Shock and scratch-resistant thanks to the elastomer molded cheeks

Applications:

  • Changing sheets
  • Spinnaker sheet deflector blocks

Materials:

  • HR 17.4 PH forged stainless steel arm
  • Elastomer molded cheeks
  • Composite sheave

Specifications:

  • Rope size: (inch) 23/32″ / (mm) 18
  • Length: (inch) 6 7/64″ / (mm) 155
  • Width: (inch) 2 21/64″ / (mm) 59
  • Thickness: (inch) 1 59/64″ / (mm) 49
  • Working Load: (lb) 2640 / (kg) 1200
  • Breaking Load: (lb) 5510 / (kg) 2500
  • Weight: (lb) 0.913 / (g) 414

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

Quick Guide Litreture

Brochure Litreture

Additional information

Weight 0.95 lbs
Dimensions 6 × 3 × 2 in
Model Number 35500
