Description

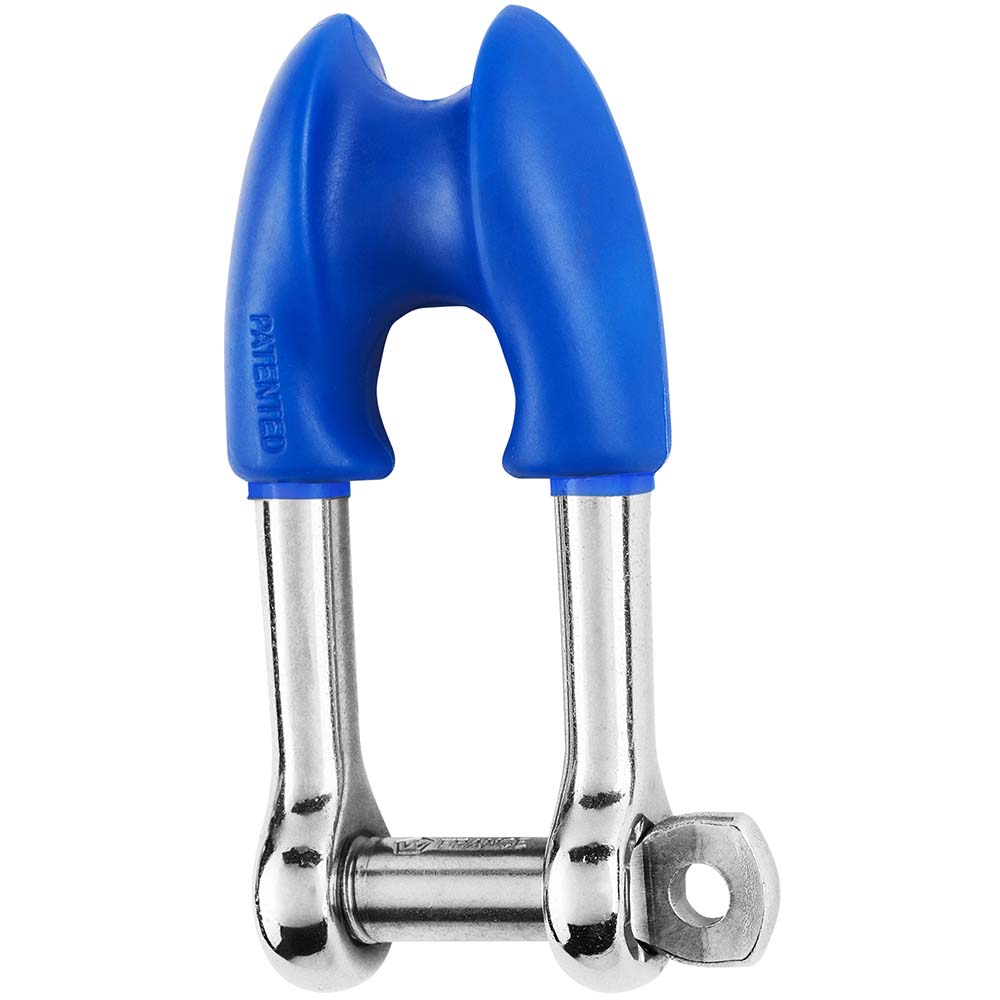

Thimble Shackle – Captive Pin – Diameter 10mm – 13/32″

Features:

• Thimble shackle with captive pin forged in grade 316L stainless steel
• Allows to spliced a rope without adding an additional thimble
• With the captive pin, no risk to lose the pin
• Outstanding working and breaking loads

Applications:

• Mainsheet halyards
• Max rope size: 16 mm

Specifications:

• Materials 316 stainless steel grade
• Working load (lb) 3350
• Breaking load (lb) 11020
• Weight (lb) 0.322

Dimensions (see 2nd image):

• A (inch) 2-1/64″
• B (inch) 25/32″
• C (inch) 25/64″
• D (inch) 25/32″
• D diameter (inch) 25/64″
• E (inch) 23/64″
• F (inch) 3-47/64″
• G (inch) 2-1/8″
