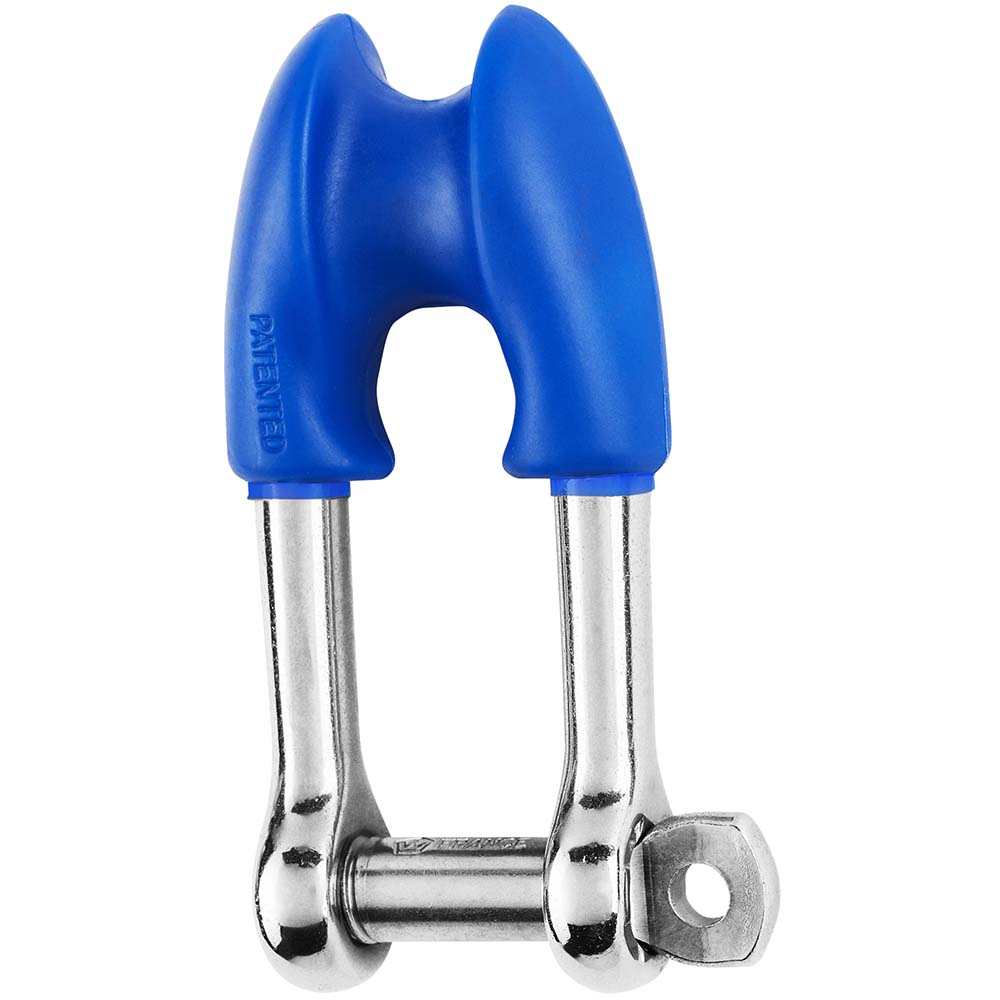

Wichard Thimble Shackle – Captive Pin – Diameter 8mm – 5/16″

93131
Wichard Marine

$87.80 $49.78

1 in stock
Qty :

Description

Thimble Shackle – Captive Pin – Diameter 8mm – 5/16″

Features:

  • Thimble shackle with captive pin forged in grade 316L stainless steel
  • Allows to spliced a rope without adding an additional thimble
  • With the captive pin, no risk to lose the pin
  • Outstanding working and breaking loads

Applications:

  • Mainsheet halyards
  • Max rope size: 12mm

Specifications:

  • Materials 316 stainless steel grade
  • Working load (lb) 2200
  • Breaking load (lb) 6610
  • Weight (lb) 0.172

Dimensions (see 2nd image):

  • A (inch) 1-39/64″
  • B (inch) 5/8″
  • C (inch) 5/16″
  • D (inch) 5/8″
  • D diameter (inch) 5/16″
  • E (inch) 9/32″
  • F (inch) 2-63/64″
  • G (inch) 1-21/32″

Additional information

Weight 0.45 lbs
Dimensions 6 × 2 × 1 in
Model Number 01494
UPC 768536014945
