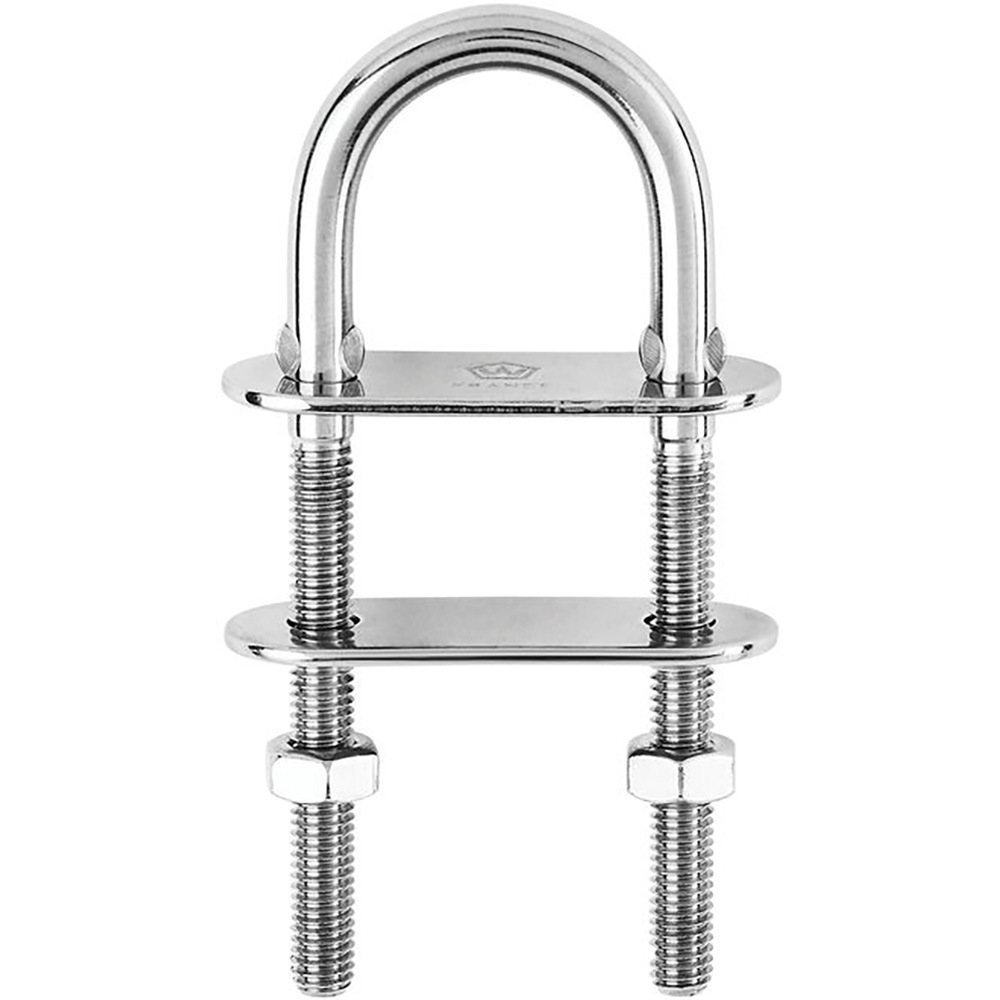

Wichard U-Bolt Pad Eye – 10mm Diameter – 25/64″ – 110mm Length – 4-21/64″

97693
Wichard Marine

$60.10 $34.07

0 in stock
Qty :
,

Description

U-Bolt Pad Eye – 10mm Diameter – 25/64″ – 110mm Length – 4-21/64″

Features:

  • Entirely drop forged product with high-quality stainless steel
  • Outstanding working and breaking loads
  • For any fastening applications (shrouds, lifelines, blocks…)
  • Delivered with bolts and counter-plate
  • Max tightening torque: 36 Nm

Applications:

  • Various fastening applications: shrouds, lifelines, blocks…

Specifications:

  • Materials: 316L stainless steel grade
  • Working load: (lb) 7930 / (kg) 3600
  • Breaking load: (lb) 15430 / (kg) 7000
  • Weight: (lb) 0.489 / (g) 222

Dimensions:

  • A: (inch) 1 37/64″ / (mm) 40
  • B: (inch) 1 17/64″ / (mm) 32
  • C: (inch) 2 9/16″ / (mm) 65
  • D diameter: (inch) 25/64″ / (mm) 10
  • Length: (inch) 4 21/64″ / (mm) 110

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

Quick Guide Litreture

Brochure Litreture

Type = NONE

Additional information

Model Number 06525
