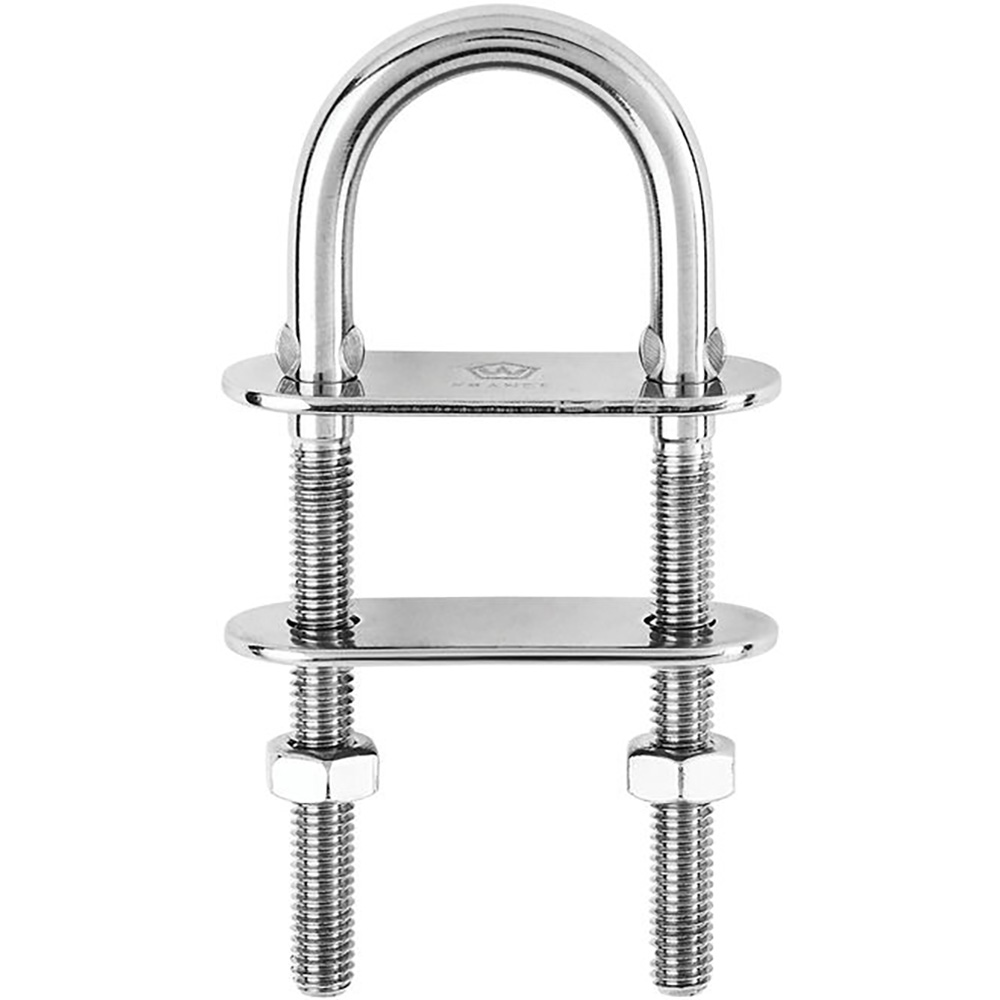

U-Bolt Pad Eye – 12mm Diameter – 15/32″ – 110mm Length – 4-21/64″
Features:
- Fully drop forged product with high-quality stainless steel
- Outstanding working and breaking loads
- For any kind of fastening applications (shrouds, lifelines, blocks…)
- Delivered with bolts and counter-plate
- Max tightening torque: 60 Nm
Applications:
- Various fastening applications: shrouds, lifelines, blocks…
Specifications:
- Materials: 316L stainless steel grade
- Working load: (lb) 14100 / (kg) 6400
- Breaking load: (lb) 22040 / (kg) 10000
- Weight: (lb) 0.703 / (g) 319
Dimensions:
- A: (inch) 1 47/64″ / (mm) 44
- B: (inch) 1 11/32″ / (mm) 34
- C: (inch) 1 31/32″ / (mm) 50
- D diameter: (inch) 15/32″ / (mm) 12
- Length: (inch) 4 21/64″ / (mm) 110
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
