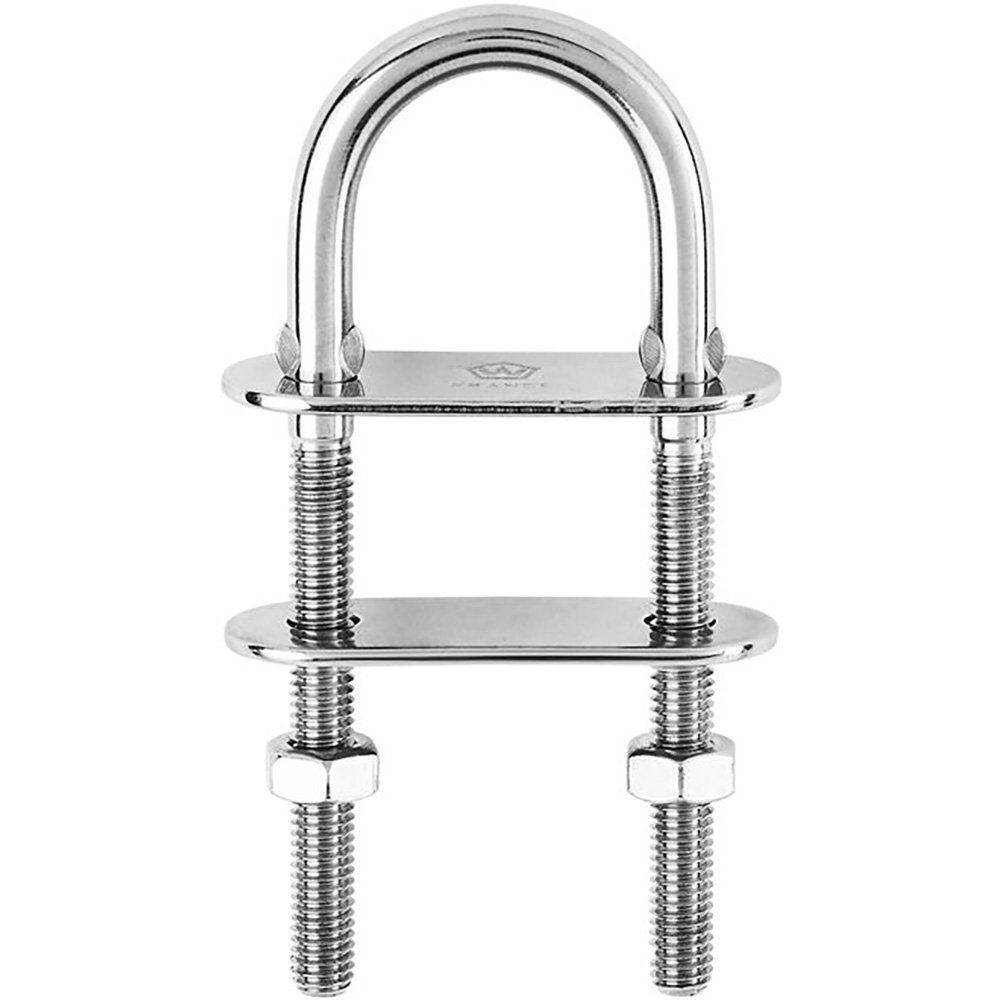

Wichard U-Bolt Pad Eye – 12mm Diameter – 15/32″ – 130mm Length – 5-1/8″

97694
Wichard Marine

$116.70 $66.16

0 in stock
Qty :
,

Description

U-Bolt Pad Eye – 12mm Diameter – 15/32″ – 130mm Length – 5-1/8″

Features:

  • Entirely drop forged product with high-quality stainless steel
  • Outstanding working and breaking loads
  • For any fastening applications (shrouds, lifelines, blocks…)
  • Delivered with bolts and counter-plate
  • Max tightening torque: 60 Nm

Applications:

  • Various fastening applications: shrouds, lifelines, blocks…

Specifications:

  • Materials: 316L stainless steel grade
  • Working load: (lb) 14100 / (kg) 6400
  • Breaking load: (lb) 22040 / (kg) 10000
  • Weight: (lb) 0.769 / (g) 349

Dimensions:

  • A: (inch) 1 47/64″ / (mm) 44
  • B: (inch) 1 11/32″ / (mm) 34
  • C: (inch) 2 3/4″ / (mm) 70
  • D diameter: (inch) 15/32″ / (mm) 12
  • Length: (inch) 5 1/8″ / (mm) 130

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

Quick Guide Litreture

Brochure Litreture

Type = NONE

Additional information

Model Number 06526
