Description

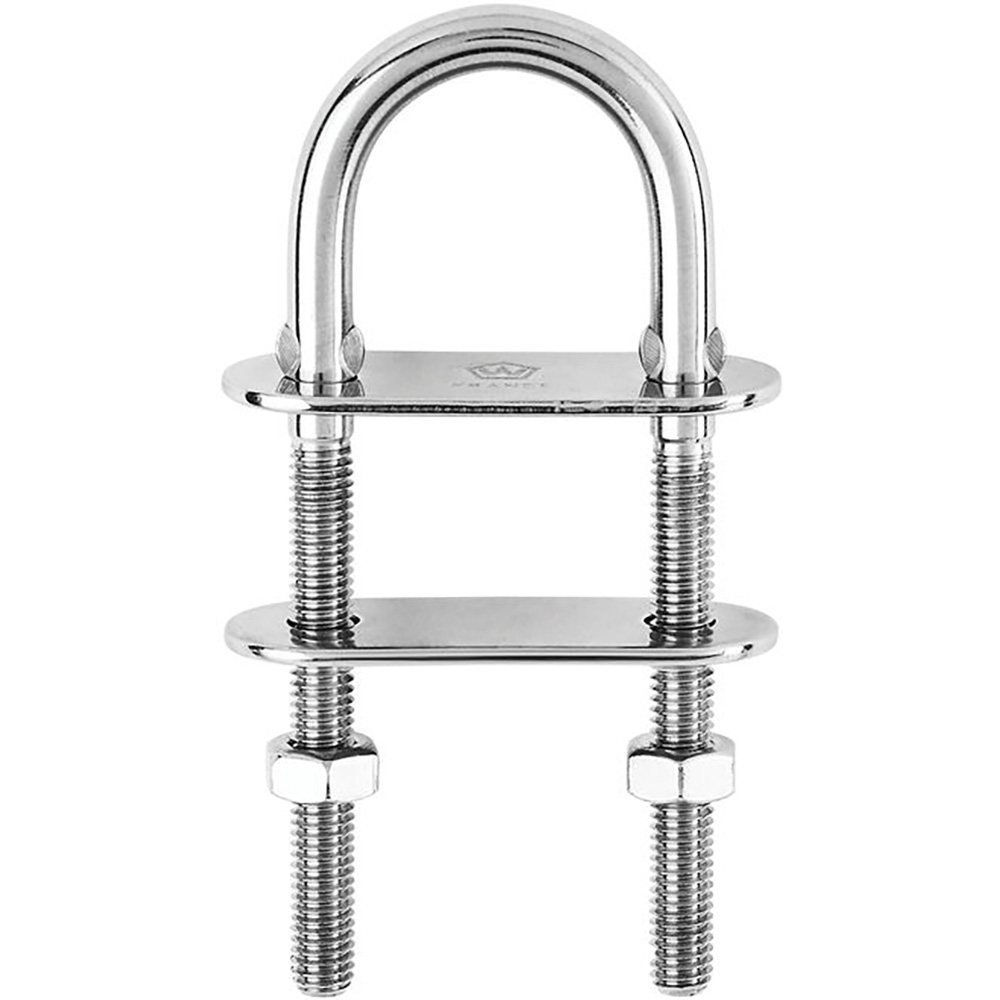

U-Bolt Pad Eye – 4mm Diameter – 5/32″
Features:
- Fully drop forged product with high-quality stainless steel
- Outstanding working and breaking loads
- For any kind of fastening applications (shrouds, lifelines, blocks…)
- Delivered with bolts and counter-plate
- Max tightening torque: 2.3 Nm
Applications:
- Various fastening applications: shrouds, lifelines, blocks…
Specifications:
- Materials: 316L stainless steel grade
- Working load: (lb) 1050 / (kg) 480
- Breaking load: (lb) 2200 / (kg) 1000
- Weight: (lb) 0.049 / (g) 22
Dimensions:
- A: (inch) 15/16″ / (mm) 24
- B: (inch) 53/64″ / (mm) 21
- C: (inch) 1 1/16″ / (mm) 27
- D diameter: (inch) 5/32″ / (mm) 4
- Length: (inch) 1 31/32″ / (mm) 50
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
Type = NONE
