Description

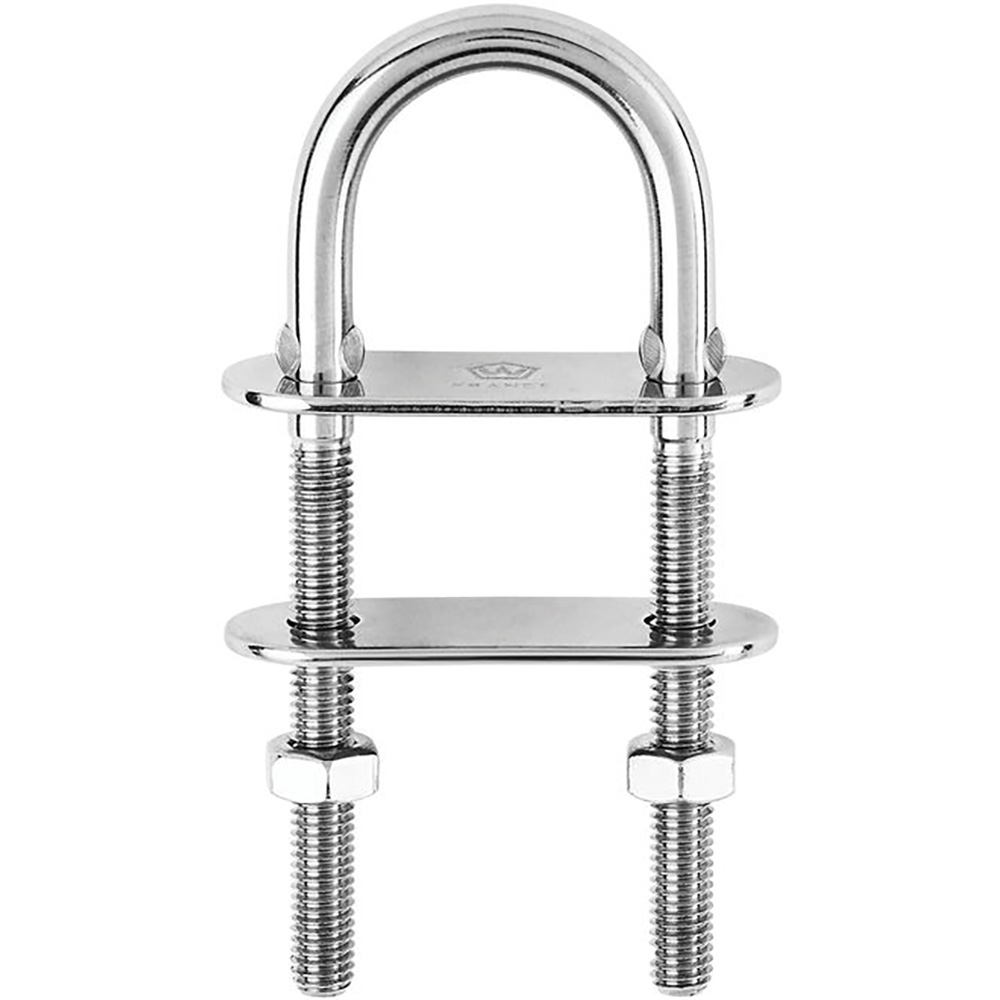

U-Bolt Pad Eye – 8mm Diameter – 5/16″ – 80mm Length – 3-5/32″
Features:
- Fully drop forged product with high-quality stainless steel
- Outstanding working and breaking loads
- For any kind of fastening applications (shrouds, lifelines, blocks…)
- Delivered with bolts and counter-plate
- Max tightening torque: 18 mm
Applications:
- Various fastening applications: shrouds, lifelines, blocks…
Specifications:
- Materials: 316L stainless steel grade
- Working load: (lb) 5290 / (kg) 2400
- Breaking load: (lb) 10580 / (kg) 4800
- Weight: (lb) 0.251 / (g) 114
Dimensions:
- A: (inch) 1 27/64″ / (mm) 36
- B: (inch) 1 3/16″ / (mm) 30
- C: (inch) 1 37/64″ / (mm) 40
- D diameter: (inch) 5/16″ / (mm) 8
- Length: (inch) 3 5/32″ / (mm) 80
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
