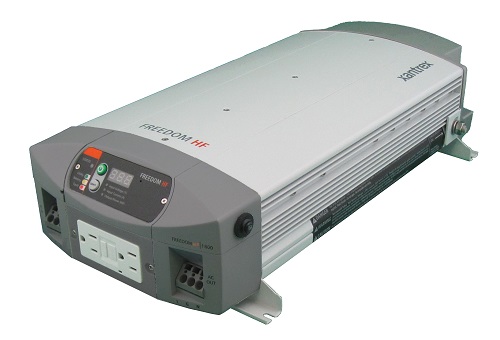

Xantrex Freedom HF 1055 1000W Inverter W/55A Charger

XAN8061055
Xantrex

$972.08 $659.95

0 in stock
Qty :

Description

FREEDOM HF REDEFINED.

No Messy Wiring. Quick Installation. Minimal Battery Drain.

The new generation Freedom HF is equipped with quick-connect AC terminals and ignition lockout capability. The quick-connect AC terminals enable quick installation eliminating the need for strain relief clamps. The ignition lockout feature helps to minimize battery drain by disabling the inverter when the ignition is turned off.

The Freedom HF Inverter/Charger is one of the smallest, lightest, and most affordable inverter/chargers in the market today. The Freedom HF Inverter/Charger features modified sine wave output and is designed to operate entertainment systems and small appliances in boats, RV?s and trucks. The Freedom HF is available in three models: 1000 watts with a 20-amp charger, 1000 watts with a 55-amp charger and 1800 watts with a 40-amp charger.

Some of the key feature enhancements include quick-connect AC terminal block on both AC input and output for incredibly easy installation. The ignition lockout feature minimizes battery drain by disabling the inverter when the ignition is turned off.

Product Features

  • Designed to power demanding loads such as microwave ovens, TVs, DVD players, small appliances and other electronic equipment
  • Removable digital display pre-attached with 25? extension cable for remote system monitoring
  • Ignition lockout feature helps to minimize battery drain
  • Automatic three-stage battery charger
  • Designed to be hardwired using quick-connect AC terminal blocks or by connecting AC through GFCI receptacles (included)
  • Built-in 30-amp relay to automatically transfer between inverter power and incoming AC utility power

Protection Features

  • Battery over-voltage and under-voltage protection
  • Over-temperature shutdown
  • Automatic overload protection
  • Short-circuit protection
  • Ground-fault protection
  • ETL certified to UL458 for use in mobile RV and commercial applications
Models HF 1000 HF 1055 HF 1800
Output Power 1000w 1000w 1800w
Surge Power 2000w 2000w 3600w
Output Frequency regulation 60 hz 60 Hz 60Hz
Inverter Voltage Regulation 115 +/- 10 Vrms 115 +/- 10 Vrms 115 +/- 10 Vrms
Output Wave Form Modified Sine Wave Modified Sine Wave Modified Sine Wave
Efficiency ( Full Load) > 80% > 80% > 80%
Peak Efficiency > 87% > 87% > 87%
No-load input power (producing output voltage) < 10 W < 10 W < 10 W
Off mode current draw (Display Off ) < 1 mA < 1 mA < 1 mA

Electrical Specifications
Charge Rate 20A 55A 40A
AC Input Voltage Range 90-130Vac 90-130Vac 90-130Vac
AC Transfer Relay 30A 30A 30A
Battery Voltage ( Nominal) 12vdc 12vdc 12vdc
Operating Voltage Range 10.5-15.5Vdc 10.5-15.5Vdc 10.5-15.5Vdc
Low battery Cut-out (Low Limit / High Limit) 10.5Vdc/11.8Vdc 10.5Vdc/11.8Vdc 10.5Vdc/11.8Vdc
AC Input ( Max Charge) 5Aac 10Aac 7.5Aac
Default Bulk Charge Voltage Setting 14.2Vdc 14.2Vdc 14.2Vdc
Default Float Charge Voltage Setting 13.5Vdc 13.5Vdc 13.5Vdc
Battery Charge Outputs One One One
Charge Control Three-stage Three-stage Three-stage
Battery Type Settings Flooded/Gel/AGM/Fixed 13.5Vdc Flooded/Gel/AGM/Fixed 13.5Vdc Flooded/Gel/AGM/Fixed 13.5Vdc
Equalization No No No
Internal Temperature-sensitive Charging Yes Yes Yes

General Specifications
Optimal Operating Temperature Range 32&#176 – 104&#176 F 32&#176 – 104&#176 F 32&#176 – 104&#176 F
Optional Remotes Detachable Display Detachable Display Detachable Display
Unit Weight 10lb 10lb 12.8lb
Unit Dimensions 4.2 x 9.5 xx 15.5" 4.2 x 9.5 xx 15.5" 4.2×9.5×18.0"
Part Number 806-1020 806-1055 806-1840

Additional information

Weight 11.00 lbs
Model Number 806-1055
UPC 715535610555
