Xantrex Heart Echo Charge Charging Panel

14258
Xantrex

$200.68 $132.37

1 in stock
Qty :

Description

Convenient Dual Battery Bank Charging

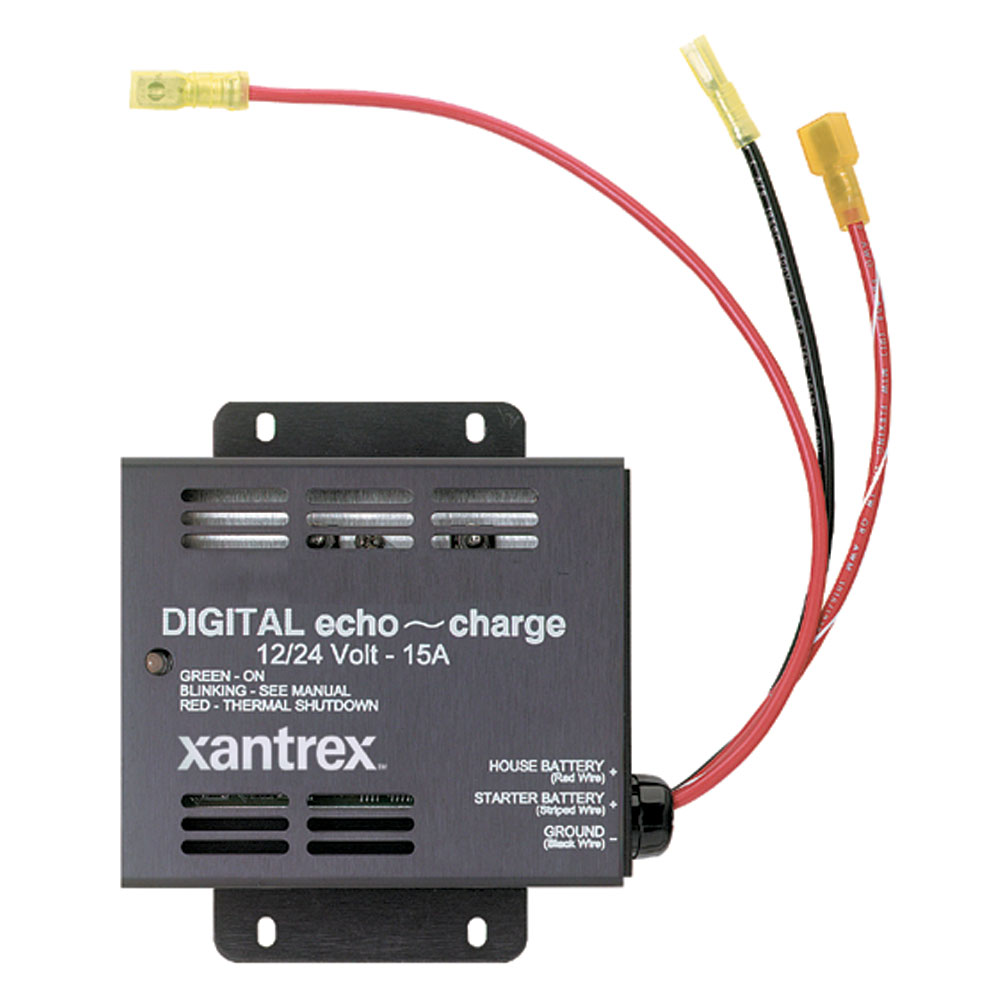

Xantrex digital echocharge (part#82-0123-01) is designed to charge auxiliary or starting batteries from an inverter/charger or other charging source with limited voltage drop. The Xantrex echocharge detects when the house battery bank is being charged and directs a portion of the charge current to auxiliary or starting batteries. The maximum charger current offered by echocharge is limited to 15 amps.

Product Features

  • 15 A maximum charge current
  • Automatically adjusts for 12 or 24 volt battery banks (both battery banks must be the same DC voltage and battery type)
  • Automatically switches on/off without affecting the in-house battery bank or over-charging
  • Utilizes excess current from the primary charging source
  • Built-in thermal and over-current circuits
  • Reverse polarity protection
  • Easy three wire installation

WarningWARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.

Quick Guide Litreture

Owner Manual

Brochure Litreture

Charger Output - Amps = 15a | Charging Banks = 1 | Portable = No | Charger Input - Voltage = 120v | Charger Output Voltage = 12/24v

Additional information

Weight 1.2 lbs
Dimensions 10 × 7 × 3 in
Model Number 82-0123-01
UPC 647912105722
Warranty 1 years
