Description

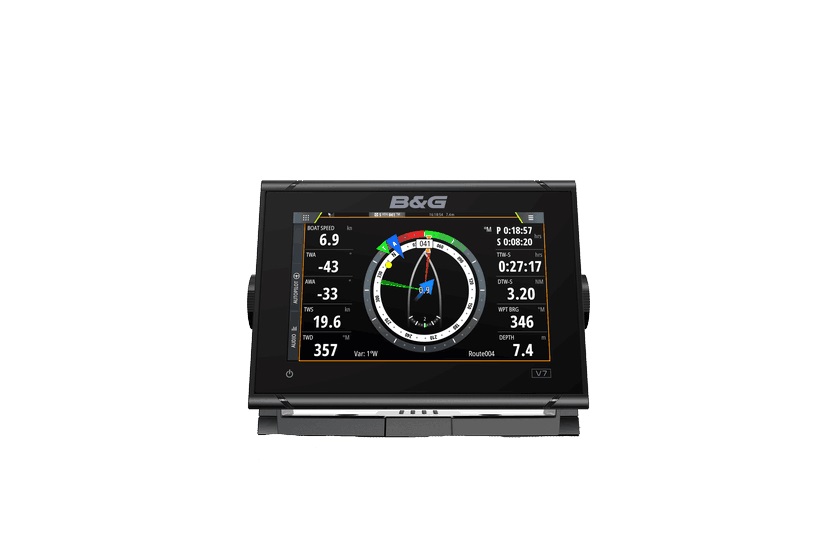

B&G Vulcan 7 7-inch chartplotter and radar display with global basemap
Model: 000-14082-001
- Easy to use multi-touch display
- Dedicated sailing features for cruising or racing: SailSteer, SailingTime, RacePanel, Laylines
- Easy to integrate — Connect Vulcan to an existing system and add basic sailing components
- Broadband Radar™ and ForwardScan™ ready
- Integrated Wi-Fi
- Control your B&G Pilot
- Instrument data display
The B&G Vulcan 7 is a great value, sailing chartplotter designed for coastal cruising and club racing. This easy-to-use, intuitive 7-inch multi-touch screen is packed with B&G’s unique sailing features including SailSteer and RacePanel. Simply integrate with your existing system, expansion is simple as Vulcan is NMEA 2000®, Broadband Radar™, ForwardScan™ and autopilot ready; and features built-in 10Hz GPS and Wi-Fi.
B&G’s Vulcan range of sailing chartplotters take the guesswork out of sailing. Whether you’re an experienced sailor or just starting out, Vulcan is packed with features that will help you get the most from your time on the water.
We’ve designed our Vulcan chartplotters to be as intuitive as a tablet or smartphone. The low-profile, super-bright display is visible even in direct sunlight, and the responsive touch screen gives fingertip control, even in flying spray and a rough sea state. Pinch-to-zoom, swipe and tap controls let you input waypoints and routes and view chart details with ease.
Let Vulcan guide you safely to your destination: place waypoints and routes with a single tap on the chart and let Vulcan take you there with clear, intuitive graphics and data for guidance. Add a compatible chart card to benefit from autorouting and let Vulcan’s intelligent software choose the best and safest route to your destination.
Enjoy safe and precise navigation with a Vulcan sailing chartplotter and C-MAP DISCOVER charts on your sailboat. Offering ultra-wide coverage for the US and Canada, C-MAP DISCOVER charts include full-featured Vector Charts, Custom Depth Shading, Tides & Currents and the very best of C-MAP high-resolution Bathymetric contours, including integrated Genesis® data. Planning a day on the water is simple with C-MAP Easy Routing™ and always have the latest DISCOVER chart data with 12 months of free online updates. If you would rather select your own chart, Vulcan is compatible with C-MAP, Navionics®, NV Digital and more.
Put Vulcan at the heart of your boat and take control of your B&G autopilot from your Vulcan’s touchscreen. With an installed controller elsewhere, the intuitive controls can be accessed from any screen with a simple tap and allow you to alter course, tack, gybe, sail to wind or compass. Take advantage of the advanced sailing algorithms that make B&G Pilots as good as the best helmsman — all from your Vulcan’s touch screen.
Know exactly where you are at all times with an inbuilt, high accuracy 10Hz GPS receiver.
Get up and running quickly: Vulcan chartplotters are optimised for sleek flush mounting, standing only 8mm proud of the bulkhead for a low-profile ‘glass helm’ look. Alternatively, mount in minutes using the supplied bracket on horizontal, vertical or overhead surfaces.
Specifications
| Display Resolution | 800×480 |
| Screen Brightness | 1200 nits |
| Waterproofrating | IPX6 & 7 |
| Operating Temperature Range | -15°C to +55°C (5° F to 131° F) |
| Storage Temperature Range | -20°C to +60°C (4°F to 140°F) |
| SD Card Storage | 1 Micro SD slot, max. 32GB each. >32 GB format to NTFS |
| Ethernet Ports | 1 x 5 pin yellow connector x 100 Mbits/s. Radar and Sirius (USA only) connectivity only |
| NMEA 2000 Connectivity | 1 x NMEA 2000 Micro-C port, 1 LEN |
| Weight | 1.320 kg (2.91lb) |
| Update rate | 10 Hz |
| Power Consumption typical | 12 W |
| Supply Voltage | 12V (10 — 17V) |
| Dimensions W x H x D | 197 mm x 141 mm x 82.7 mm (7.56″ x 5.55″ x 3.26″) (no bracket) |
| Warranty Period | 2 Years |
| Power Consumption max | 20 W |
| GPS Receiver Channels | 32 Channels |
| Recommended Fuse Rating | 3A |
| Waypoints, Routes, Tracks | 6000 waypoints, 500 Routes with 100 max route points, 50 tracks with up to 12,000 track points. |
| Display Size | 7 inches |
| Viewing Angles | 80° top/bottom, 80° left/right |
| Internal Storage | 90MB |
| Digital Switching | BEP C-Zone, NaviOP |
| Mounting Type | Bracket or Panel |
| Time to First Fix | Cold start less than 90 seconds exposed to open sky, Satellite Reacquisition 5 sec |
| NMEA 0183 Sentences supported | Exports NMEA0183 over WiFi |
| Radar compatibility | Halo, Broadband, HD Radars |
| Position Accuracy | Horizontal Accuracy 3 m (9.8 ft.) |
| Charts supported | Insight, Navionics (Gold, NAV+ Platinum+) , C-MAP (MAX N, MAX N+) NV Digital (Raster US Charts) |
| Sonar Compatibility | Integrated CHIRP / DownScan / ForwardScan. Single 9 Pin Xsonic Connector |
| Connectivity Wi Fi | Internal |
| Bluetooth | Internal |
| GPS | Internal, 10Hz, WASS, MSAS, EGNOS |
| PC Connectivity | None |
| Video | None |
| AIS | Receive AIS data over NMEA 2000 only |
| Weather | Sirius XM WM-3 (USA only), GRIB |
| Manouevres Turn Patterns | Tack / Gybe, Depth contour tracking |
| Interface | Touch screen, ZC1 or ZC2 controller via NMEA 2003 |
| Multimedia | via SonicHub2, Fusion Link, *Sirius, **JL Audio. (*USA only, **AUST. & NZ only) |
| Correction | WASS, MSAS, EGNOS, GLONASS |
| Backlight Color | White |
| Steering Modes | Wind*, Auto, Nav., No Drift, Follow up, Non-follow up, Standby, Wind NAV.* (*Boat type set to Sail) |
| Autopilot | Wind*, Auto, Nav., No Drift, Follow up, Non-follow up, Standby, Wind NAV.* (*Boat type set to Sail). Requires STBY button or Controller with STBY button to commission |
What’s in the Box:
- Vulcan 7 Display
- Sun Cover
- Mounting Brcket and Knobs
- Dash Mount Kit
- Bezel
