Description

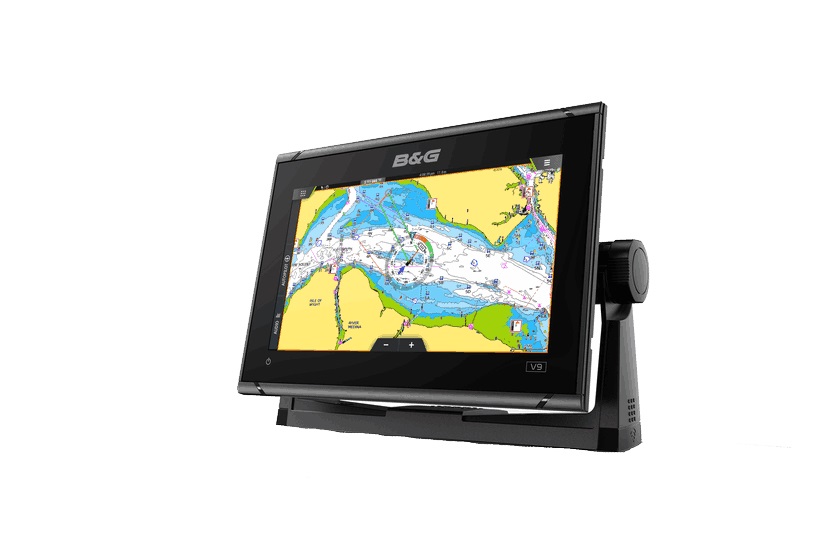

B&G Vulcan 9 FS 9″ Multifunction display
Model: 000-13214-001
- Easy to use multi-touch user interface
- Glass dash styling
- Super bright widescreen display
- Radar integration
- Built in Wi-Fi connectivity
- Built in 10 Hz, high sensitivity GPS antenna
- Dual Micro SD card slots
- Built in echosounder (Broadband & Chirp)
- Built in ForwardScan sonar
- Operates with ZC1 and ZC2 Remote controller
- Advanced NMEA2000 networking
- BEP C-Zone Integration
- Fusion Link and sonicHub2 Audio Support
- AIS SARTs
- NMEA Data Logging
- GRIB Weather support
- H5000 system integration
- SailSteer, Laylines with Sailing Time, WindPlot
- Adjustable page split ratios and panel layouts
- Best in Class Cartography support
The B&G Vulcan9 FS Display is a powerful all-in-one Chart plotter and depth sounder for mid sized sail boats. Vulcan9 FS incorporates B&G’s forward looking collision avoidance sonar technology for safe passage making in areas where chart accuracy is uncertain. Vulcan9 includes B&G 3G and 4G Radar support giving the user ultimate situational awareness for passage making at night and in poor weather. Vulcan9 will also connect to B&G sailing instruments and autopilot systems for a fully integrated electronics package. No physical buttons and low profile mounting options makes Vulcan9 one of the cleanest and most integrated looking navigation device for aftermarket installs. Combine this with an extensive set of advanced sailing software features inherited from it’s bigger brother, the Zeus2, and the Vulcan 9 is the go-to standalone navigation display for the aspiring sailor.
Specifications
| Mechanical/Environmental | |
| Casing | PC/ABS |
| Operating temp | -15°C to +55°C (+5°F to +131°F) |
| Water ingress | IPX6 and 7 |
| Weight (excluding mounting hardware) | 1.315 kg (2.9 lbs) – GO9 XSE |
| Screen brightness | 1200 nits |
| Screen resolution | 480 x 800 (H x W) |
| Viewing angle in degrees (typical value at contrast ratio = 10) | L/R: 70, top: 50, bottom: 60 |
| Electrical | |
| Operating voltage | 10 – 17 V DC |
| Current draw at 13.6 V (sonar off, max B/L) | 1 A |
| Low power standby mode | yes |
| Protection | reverse polarity and temporary over-voltage to 36 V |
| Alarm output current | 1 A max |
| Processor | iMX61 single core |
| NMEA 2000 (compliant) | 1 port (Micro-C male) -,network load 1 LEN : 1 combined port Power and NMEA 2000 (7 pin connector) |
| Card reader | Dual microSD |
What’s in the Box:
- Vucan 9 Display
- Suncover
- Edge Bezel
- Dash Mount Kit
- 4-Pin Power Cable
- Gimbal mounting bracket and knobs
