Description

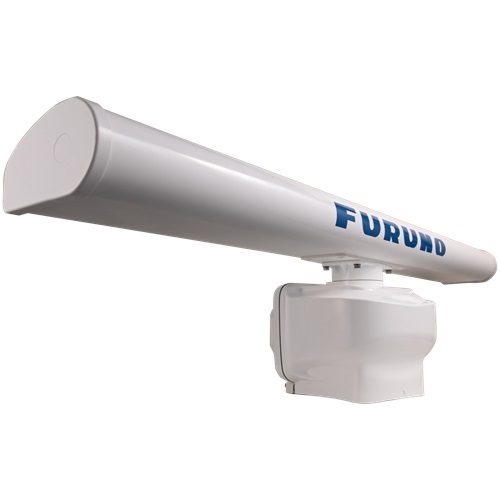

Furuno DRS25AX 25kW X-Band Radar with 4′ Antenna. No longer include 15 cable

Model: DRS25AX/4

• 25kW Power Output
• Enhanced target detection, both short and long range
• Minimum detection range of just 20 m
• Fast Target Tracking™
• Bird Mode
• New pedestal unit 20% lighter than previous unit, updated with new, low noise motor
• No PSU required, decreasing total costs
• Easy installation without the need to open pedestal unit
• The DRS25AX is a 24V system; a converter will be required for use with 12V power systems
• Compatible with NavNet TZtouch and NavNet TZtouch2 (not compatible with NavNet 3D or earlier NavNet models)

Pushing the boundaries of what is possible with conventional Radar technology, DRS25AX “X-Class” marks yet another leap forward for FURUNO. Improved in almost all aspects, DRS25AX “X-Class” Radar features improved short range detection, as well as an impressive long range detection of up to 96 nautical miles.

The newly redesigned pedestal unit is 20% lighter than previous models and features an updated motor for significantly lower noise levels. Combined with an updated smart-connector cable, installation and maintenance is simpler than ever before.

Fast Target Tracking™ function adopted from our commercial Radar FAR3000, is also available on the DRS25AX “X-Class.” Target course and speed vectors are displayed instantly with the press of a button. Target vectors increase situational awareness and can increase overall safety on your vessel.

Specifications

What’s in the Box:

• Scanner Unit
• Fuse ATV10A60V
• Corrosion-proof pad x 4
• Hex Nut M12 x 8
• Spring Washer M12 x 4
• Flat Washer M12 x 4
• Hex Stud M12x70 x 4
• Installation Manual
• Mounting Template
• Environmental Data Sheet
• XN12A/4 4′ Antenna
