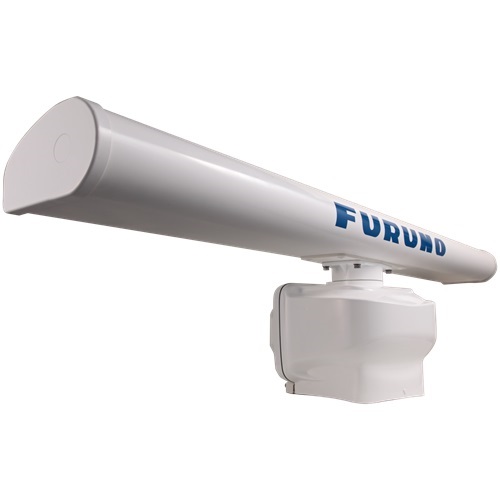

Furuno DRS25AX 25Kw X-BAND Pedestal with a 6′ Antenna and Cable

FURDRS25AX6
Furuno

$8070.00

(MRP Pricing)

0 in stock
Qty :

Description

Furuno DRS25AX 25kW X-Band Radar with 6′ Antenna and 15 meter Cable

Model: DRS25AX/6

  • 25kW Power Output
  • Enhanced target detection, both short and long range
  • Minimum detection range of just 20 m
  • Fast Target Tracking™
  • Bird Mode
  • New pedestal unit 20% lighter than previous unit, updated with new, low noise motor
  • No PSU required, decreasing total costs
  • Easy installation without the need to open pedestal unit
  • New smart-connector cable
  • The DRS25AX is a 24V system; a converter will be required for use with 12V power systems
  • Compatible with NavNet TZtouch and NavNet TZtouch2 (not compatible with NavNet 3D or earlier NavNet models)

Pushing the boundaries of what is possible with conventional Radar technology, DRS25AX “X-Class” marks yet another leap forward for FURUNO. Improved in almost all aspects, DRS25AX “X-Class” Radar features improved short range detection, as well as an impressive long range detection of up to 96 nautical miles.

The newly redesigned pedestal unit is 20% lighter than previous models and features an updated motor for significantly lower noise levels. Combined with an updated smart-connector cable, installation and maintenance is simpler than ever before.

Fast Target Tracking™ function adopted from our commercial Radar FAR3000, is also available on the DRS25AX “X-Class.” Target course and speed vectors are displayed instantly with the press of a button. Target vectors increase situational awareness and can increase overall safety on your vessel.

Specifications

Input voltage 24vDC
Optional Antenna 3.5′ or 4′ or 6′
Horizontal Beam Width 2.3° with 3.5′ antenna
1.9° with 4′ and 1.4° with 6′
Vertical Beam Width 22°
Maximum Range 96nm

What’s in the Box:

  • Scanner Unit
  • Fuse ATV10A60V
  • Corrosion-proof pad x 4
  • Hex Nut M12 x 8
  • Spring Washer M12 x 4
  • Flat Washer M12 x 4
  • Hex Stud M12x70 x 4
  • Installation Manual
  • Mounting Template
  • Environmental Data Sheet
  • Signal/Power Cable Assy 15M
  • XN13A/6 6′ Antenna

Additional information

Weight 75.00 lbs
Model Number DRS25AX/6
