Description

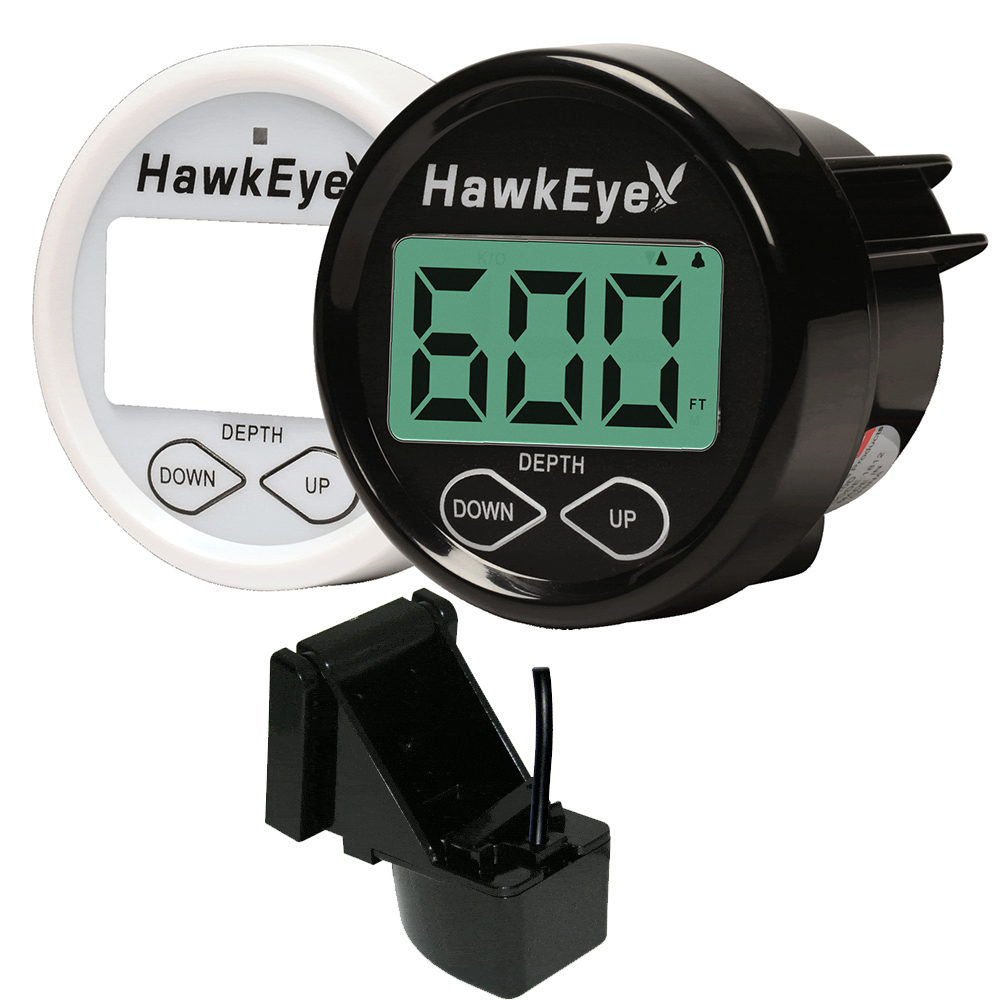

DepthTrax In-Dash Digital Depth & Temp Gauge – Transom Mount
The DepthTrax 2BX includes all the advanced sonar, depth alarm, and keel offset capabilities of the DepthTrax 2B, but also integrates dual temperature displays and an AIRMAR®, ultra-sensitive, high-performance transom mount transducer. With a simple press of a button on the DepthTrax 2BX display produces instant access to water or air temperature readings via integrated sensors in both the head unit and the transducer.
The DepthTrax 2BX delivers a combination of performance and affordability unrivaled in any other depth sounder.
Features:
- Algorithmic programming significantly reduces false readings and produces unmatched precision
- EasyTouch programming allows one-touch access to the user settings
- User programmable keel offset automatically adjusts depth readings for vessels’ draft requirements
- Selectable Imperial or Metric readout
- Dual Upper and Lower depth alarms can be set throughout the full depth range
- 3-Stage Advanced Warning System™ clearly signals an alarm condition with an audible alarm, LED and LCD indicators with one-touch alarm muting
- Displays air & water temperature in °F or °C
- Automatic memory retention of all user settings
- Removable face system – includes White & Black faceplates and White/Black trim rings
- No glare, polarized LCD icon display with storage sun cover
- SoftGlow™ backlit display and programming keys – low intensity, low temperature lighting prevents eye strain and condensation while providing unparalleled nighttime viewing
Technical Specifications:
- Gauge Dimensions (Diameter x Depth) – 2″ x 1.75″ (51 x 45mm)
- Screen Dimensions (Height x Width) – 1.65″ x .87″ (42 x 22mm)
- Gauge Cut-out Size – 2″
- Operating Temperature – 0 to 160° F (-18 to 71°C)
- Depth Range – 2.5′ to 600′ (.7 to 180 M)
- Transducer Type – Transom Mount
- Transducer Frequency – 200kHz
- Transducer Beam Angle – 14°
- Transducer Cable Length – 30′ (9 M)
- Power Requirement – 12 – 14 VDC
In the Box:
- Gauge
- Bezel/Faceplate – Black and White
- Display cover
- Mounting hardware
- Transducer – transom mount w/30′ cable
- Instruction manual
*Sold as an Individual
Box Set = No | Gauge Size = 2" | Gauge Type = Depth Sounder | Series = NONE | Voltage - Input Range (Volts) = 12 - 14
