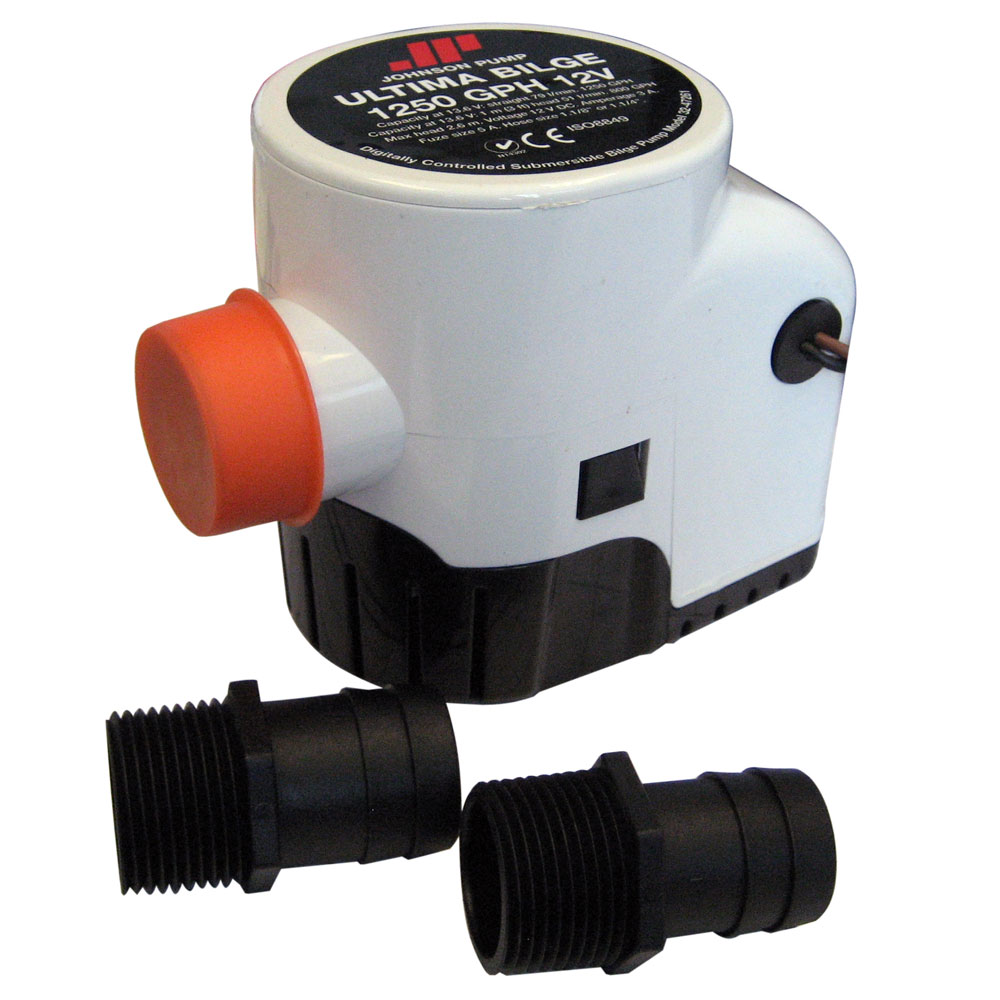

Ultima Bilge Pump
UltimaBilge Pumps are the latest addition to the Johnson Pump brand lineup. Integration of the Ultima “field effect” sensing technology into the bilge pump body creates a sleek, reliable and compact unit with integrated switch ready to install and run for years and years of unerring service. Available in 600-800-1000-1250 GPH versions. Voltage 12 V DC. For UltimaBilge 600 GPH-1000 GPH, we have easy-to-install Dura-Port discharge ports to eliminate stress cracking caused by over-tightened hose clamps. The pumps are delivered including both a straight and a 90 degree smooth elbow Dura-Port. For UltimaBilge 1250GPH we include threaded 1.1/4″ & 1.1/8″ discharge port.
All version are delivered with a removable check valve.
The Ultima Bilge pumps may be manually operated via the Johnson Pump bilge control panel.
CE-Approved
Features:
- Compact, all-in-one unit
- Integrated Ultima Switch sensing right into the pump body
- No Mercury
- Removable clip on basket design
- Removable impeller cover allows for easy clean out
- 3-wire device can be run in auto or manual override mode
- No tools needed for maintenance
- Extremely energy efficient
- Water-cooled motor for long service intervals
- Pump Body: ABS
- Shaft Seal: Lip Seal
- Shaft: Stainless steel (SS2343)
- Voltage: 12 V DC
- Capacity 3 ft (0.9 m) head (13.6 V): 51 l/min – 800 GPH
- Capacity straight (13.6 V): 79 l/min – 1250 GPH
- Amperage: 3 A
- Fuse Size: 5 A
- Connection: 1-1/8″ and 1-1/4″
- Length:142 mm – 6″
- Width:82 mm – 3.2″
- Height:117 mm – 4.6″
- Weight:0.66 kg – 23.3 oz.
Gallons Per Hour = 1250 GPH | Gallons Per Minute = NONE | Operation = Automatic | Outlet Size = 1-1/4" or 1-1/8" | Volts = 12v | Type = Electric
