Raymarine Axiom2 XL 19 Kit with RCR-SD, Alarm and Cable

RAYT70546
Raymarine

$9999.99

(MRP Pricing)

3 in stock
Qty :

Description

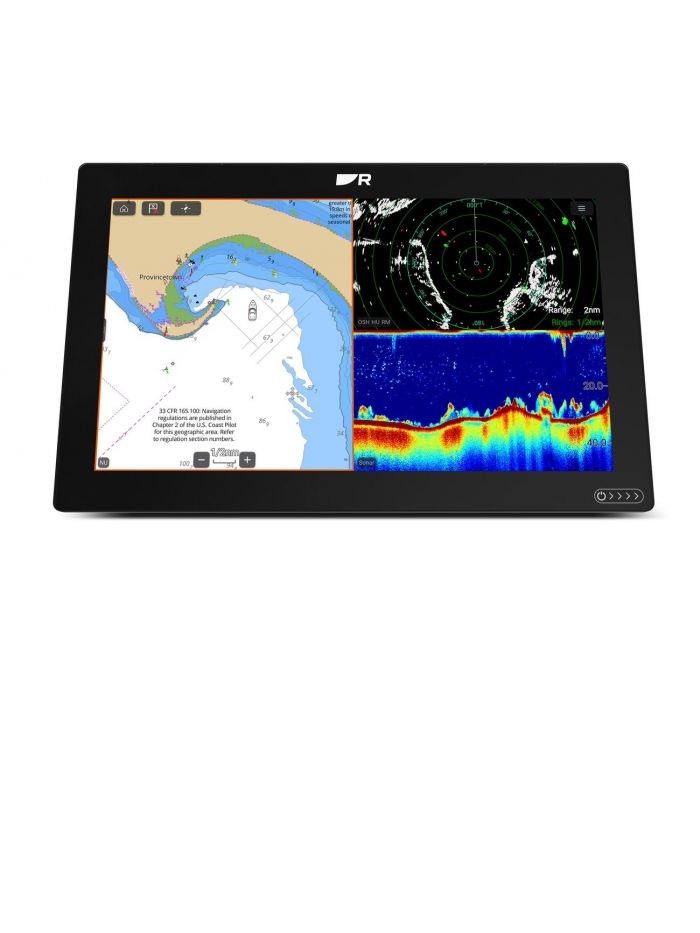

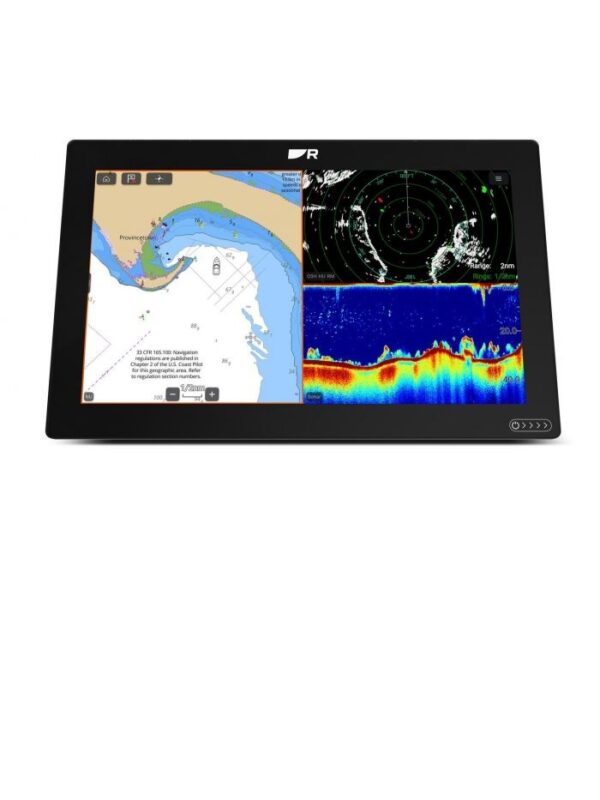

Raymarine AXIOM2 XL 19 – 18.5″ Multifunction Display Only

Model: E70662

  • Created from official hydrographic charts, you can trust LightHouse Charts and Axiom 2 XL for maximum readability, intuitive navigation, and superior quality.
  • Add a Quantum 2 radome or Cyclone open array radar and navigate safer with Doppler target tracking and radar/chart overlay.
  • FLIR thermal imaging and Axiom 2 XL turn night into day, keeping you safe and secure so you can boat with confidence.
  • Outfit Axiom 2 XL with CHIRP sonar modules. Choose the CP570 for deep water adventures or the RVM1600 with RealVision MAX SideVision, DownVision, and 3D fish finder.
  • Axiom 2 XL offers a suite of smart sailing features to help you optimize your performance under sail, including layline overlays, preloaded polars, sailing dashboards, and race timers.
  • Axiom 2 XL’s intuitive LightHouse operating system makes everything easier. Integrate all navigation, engine and sensor data on a single display
  • Add a CAM300 and an AR200 sensor for ClearCruise augmented reality. See AIS, waypoints, and chart objects overlaid on high-definition video.
  • Connect with NMEA2000-compatible engines or experience advanced integration with Mercury SmartCraft and Yamaha Command Link engines.
  • Add the YachtSense Link router and keep your system connected onboard and off with the Raymarine mobile App.

The flagship of the Axiom family, Axiom 2 XL delivers powerful chartplotter performance, stylish large-format navigation, and the confidence of the LightHouse operating system. Designed for all weather conditions, the rugged yet beautiful Axiom 2 XL displays are at home in open cockpits or enclosed glass bridge stations. Enhanced with powerful 6-core processors, expanded networking, and ultra-bright HydroTough displays, Axiom 2 XL is the premium chartplotter for captains who demand the best.

Axiom 2 XL chartplotters do everything faster. Pan and zoom charts with ease and harness the full power of Axiom 2 XL with radar, sonar modules, autopilot, and video integrated seamlessly with the intelligent LightHouse operating system.

Axiom 2 XL’s exclusive HydroTough™ nano-coating technology repels water for confident touchscreen control, beautiful colors, and excellent sunlight visibility.

Axiom 2 XL’s ambient light sensor automatically adjusts display brightness for day and evening lighting conditions.

Navigate effortlessly with Axiom 2 XL’s touchscreen or take command with the optional RMK-10 remote keypad. The RMK-10 provides full remote control of every Axiom on the helm.

Specifications

Weight 7.6 kg (16.76 lbs)
Power consumption @ 12 V dc 85.42 W
Power consumption @ 24 V dc 73.98 W
Off current @ 12 V dc PoE: 2,135 mA (25.62 W), No PoE: 352 mA (4.32 W)
Off current @ 24 V dc PoE: 1,161 mA (27.6 W), No PoE: 352 mA (5.54 W)
PoE operating voltage range 9.5 V dc to 32 V dc
Current 8.98 A
Operating voltage range 8 V dc to 32 V dc
Fuse rating 15 A
Nominal supply voltage 12 V dc / 24 V dc
Dimensions Height: 289.44 mm (11.40 in), Width, 461.78 mm (18.18 in), Depth (including cables): 174.95 mm (6.89 in)

Additional information

Weight 25.00 lbs
Model Number T70546
UPC 723193844922
