Simrad NAC-2 VRF Core Pack

SIM00013337001
Simrad

$1379.00

(MRP Pricing)

2 in stock
Qty :

Description

Simrad NAC-2 VRF Low-current Core Pack

Model: 000-13337-001
UPC: 9420024155653

NAC-2 VRF Core Pack: Comprising of the high-current NAC-3 autopilot computer andPrecision-9 compass.

The NAC-2 Autopilot Computer is the brains behind your autopilot system. NAC-2 contains the control algorithms developed to helm a yacht across a broad range of weather conditions and sea-states, alongside the electronics needed to operate a hydraulic or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-2 was designed for boats up to 10 metres (33 feet) in length and is suitable for low-current hydraulic drives, mechanical drives, or solenoid valves with a current rating of 8 Amps continuous (12 Amps peak).

Specifications

Operating temperature -25°C to +55°C (13°F to 131°F)
protection Splashproof, IPx5
Electrical
Power supply 9-31.2 V DC
Load 140 mA + drive unit load
Performance Drive: 8 A cont., 16 A for 1 s
Interfaces
network 1xMicroC (NMEA2000)
Feedback Variable voltage/resistive 0-5V
Drive output To PUMP-1 or HELM-1
Solenoid 12/24V DC, common, load range 10mA to 10A, off current <1mA
Clutch 12/24V DC, min 10mA, max 3A

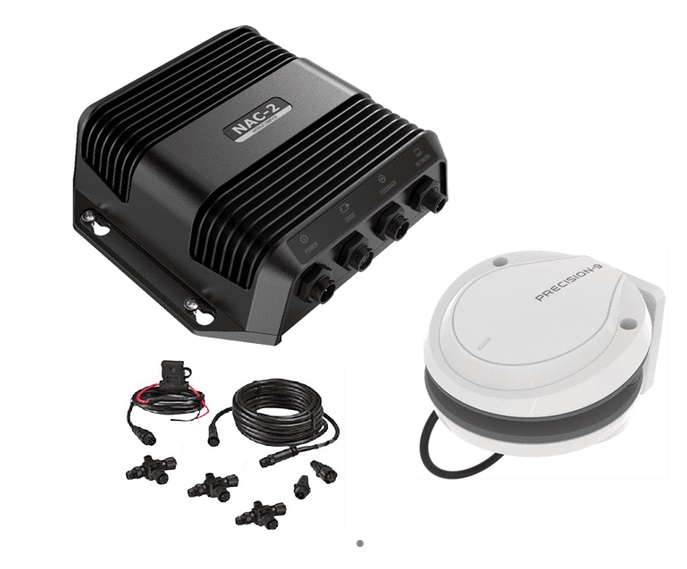

What’s in the Box:

  • NAC-2 Autopilot Computer
  • PRECISION-9 COMPASS
  • N2k Backbone Starter Kit

Additional information

Weight 8.00 lbs
Model Number 000-13337-001
UPC 9420024155653
