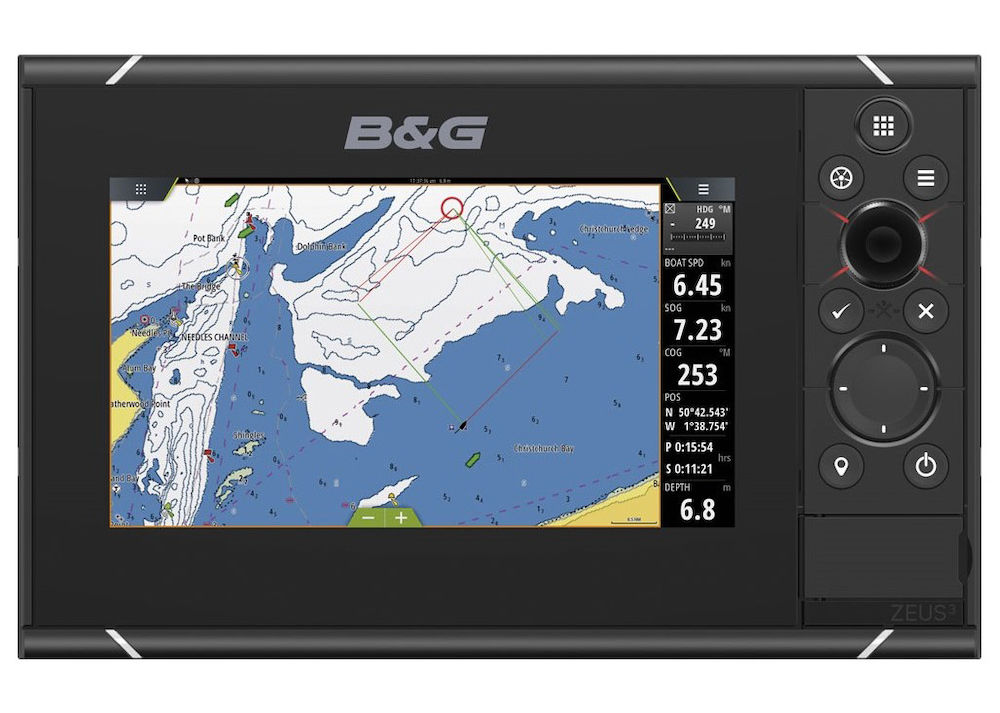

B&G Zeus3 7 Display

BNG00013241001
B & G

$1399.00

(MRP Pricing)

0 in stock
Qty :

Description

B&G Zeus3 7 Display

Model: 000-13241-001

  • A super-bright 7″ SolarMAX™ HD display with ultra-wide viewing angles
  • Dedicated sailing features such as SailSteer, Laylines and RacePanel
  • High-performance processor for responsive operation and quick chart redraw
  • All-weather touchscreen plus full rotary and keypad controls
  • Wi-Fi enabled for easy access to charts, weather, updates, support, and screen mirroring
  • Built-in ForwardScan™ sonar support for safer passage through shallow waters

Enjoy full control whatever the conditions with Zeus . Ideal for the serious cruising or racing sailor, Zeus3 boasts a stunning touschscreen and keypad, high-speed processor and B&G’s award-winning sailing features. Let Zeus3 guide you to your destination. *For 9, 12 and 16 inch models, see our new Zeus3S range.

The SolarMAX HD screen ensures perfect visibility in all conditions. Zeus3’s screen has been tested to the limit in everything from tropical sunlight to the depths of the southern ocean and polar winters. You can see it through polarised sunglasses, and the responsive touchscreen works even in flying spray and rough sea.

Zeus3 has an integrated rotary dial and keypad that can take over control of all functions in extreme conditions, along with customisable keys for instant access to frequently-used functions.

Enjoy exceptional situational awareness thanks to Zeus3 ‘s high-performance processor. There’s plenty of processing power to run charts, radar, ForwardScan and autopilot controls simultaneously without compromising on performance — giving you all the tools you need to enjoy the sailing, safe in the knowledge that you can monitor your surroundings.

Opt for a dual-station installation and Zeus3 will ensure you’ve got the data you need, where you need it. Share your charts, radar and sonar between multiple Zeus3 displays at the helm, nav station and elsewhere on board over a lag-free Ethernet connection, for simple installation and lightning fast networking between displays.

See all the data you need at a glance on one easy-to-read display with SailSteer. See crucial wind, speed, tide, heading, course over ground, layline and waypoint information, overlaid on one screen to ensure you have the information you need at your fingertips.

Let Zeus do the hard work: See your course and minimize your time spent beating with Laylines overlaid on your chart. See which way is best and ensure you tack in the right place to help you get to windward as efficiently as possible. Laylines even take into account tidal effects and wind shifts to plot the quickest course to the next waypoint.

Plan effectively with SailingTime and know how long it will take to get to a waypoint, even if it’s dead upwind. SailingTime calculates the time you’ll spend on each tack, taking into account wind and tidal effects, to give you an accurate ETA at your destination.

Be on the line as the gun goes with RacePanel. Enjoy easy-to-use features previously only enjoyed by Pro navigators to ensure you get the best start in the fleet, with time, distance and positioning information on a single clear display.

Know exactly where your boat is at all times with an inbuilt 10Hz GPS receiver that plots your position with exceptional accuracy.

Zeus3 sits at the heart of your boat — and you can take command of commissioning and controlling your B&G autopilot from your Zeus3 touchscreen. Tack, gybe, sail to wind or compass heading and take advantage of the advanced sailing algorithms that make B&G Pilots the best in their class.

Built in WiFi allows you to mirror and control the screen from anywhere on board on a Smartphone or Tablet using the Link App, for a cost-effective dual-station solution. Back up your settings and waypoints, or connect to a Wireless hotspot or marina WiFi to download weather forecasts and download software updates straight to your device. Connect your phone via Bluetooth to read and respond to text messages from the chartplotter’s display.

Enjoy a fully connected sailing experience and control and monitor your H5000 instrument system on board from the display. Zeus3 can also take full control of onboard systems using Naviop and CZone, allowing fingertip command and monitoring of lights and systems on board.

Specifications

Physical
Dimensions 239 x 150 x 90 mm (9.4 x 5.9 x 3.5″), With bracket: 263 x 161 x 93 (10.35 x 6.31 x 3.66″)
Weight 1.1 kg (2.42 lbs.)
Enviromental
Operating temperature range -15°C to +55°C (5° F to 131° F)
Environment Shock Vibration 100,000 cycles of 20G
Storage temperature range -20°C to +60°C (4°F to 140°F)
Water resitance IPX6 and 7
Power
Supply voltage 10 – 31.2 V DC
Fuse rating 3A
Power consumption (Max) 20W
Display
Display backlight color White
Display resolution 600 x 1024
Display screen brightness 1200 nits
Display sizeand type High Visibility SolarMax HD® IPS 7″ optically bonded TFT
Display viewing angles 80° top/bottom, 80° left/right
Connectivity
Ethernet 1 x 5 pin yellow connector x 1 Mbit, max 6 processors on network
Bluetooth Internal
NMEA2000 connectivity 1 x NMEA 2000 Micro-C port, 1 LEN
NMEA 0183 connectivity 1 x Transmit, 1 x Receive NMEA 0183, Baud Rates 4800, 9600, 19200, 38400. TX and RX use same baud rate. Optional data cable required (P/N 000-00129-001)
Video connectivity 2 x composite (RCA connectors)video inputs. Optional video/ data cable required (P/N 000-00129-001).
WiFi connectivity Internal
Sonar
Sonar frequencies 40-250kHz 455-800kHz
Sonar max depth 3000’+ (tested with B175L)
Sonar output power 1kW RMS
GPS
GPS Internal
GPS update rate 10 Hz
GPS channels 34 Channels
GPS correction WASS, EGNOS, MSAS, GLONASS
GPS position accuracy Horizontal Accuracy 3 m (9.8 ft)
GPS time to first fix Cold start 50 sec, Satellite Reacquisition 5 sec

What’s in the Box:

  • Zeus3 7 Display
  • Dash Mount Kit
  • Edge Bezels
  • Sun cover
  • 4-Pin Power Cable
  • Gimbal mounting bracket & knobs

Additional information

Weight 8.00 lbs
Model Number 000-13241-001
UPC 9420024154113
