Description

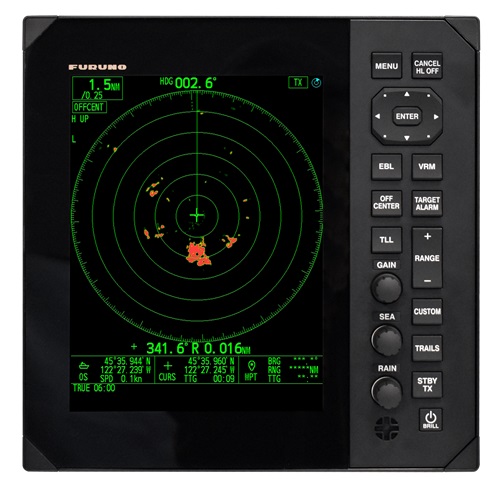

Furuno 10.4″ Portrait-Style Radar, less antenna
Model: FR10
Risk Visualizer is a unique feature that allows the navigator to see areas with a high risk of collision as well as displaying the time to reach those areas, with many options for customization. This technology shows potential collision areas based on the current position and movement of all surrounding vessels, providing a quick and intuitive overview of the situation around your ship. Color-coded alerts help you assess the level of danger and plan your next move, contributing to the continuous improvement of safety at sea.
DRS Radars include features such as Fast Target Tracking, immediately displaying a vector line indicating the target’s speed and heading. When connected to an NXT Radar, solid-state features are unlocked, such as RezBoost Beam Sharpening and Target Analyzer, instantly identifying hazardous targets.
Custom AIS presentation, flexible Anti-Clutter controls, and a Stern Up presentation are all available.
Fast Target Tracking is a technology that instantaneously displays a vector indicating the speed and heading of the target. The targets are automatically tracked from the beginning, making it possible to immediatley calculate the target;s trajectory and display the velocity vector.
Echo Average is a Feature that attenuates irregular echoes, such as reflections from the sea surface and precipitation, and stabilizes echoes from fishing gear and other vessels. It makes it easier to see what you want to see, even in poor weather conditions such as high waves, preceipitation or dense fog.
Specifications
| Display Unit | |
| Screen Size | 10.4-inch Colot LCD |
| resolution | 800 x 600 (SVGA) |
| Antenna Unit | |
| Range Scale DRS5DL+ | 0.0625 to 36nm |
| Range scale DRS52DNXT/4DNXT | 0.0625 to 48NM |
| Range Scale DRS6A-NXT | 0.0625 to 72NM |
| Range Scale DRS6A/12A/25A, DRS12ANXT/25A-NXT | 0.0625 to 96nm |
| Main Functionalities | |
| Risk Visualizer | Available |
| Target Analyzer | Available *Solid State Sensors only |
| Target Tracking | Available *Fast Target Tracking |
| True Echo Trail | Available |
| Echo Average | Available |
| Sub Display Unit | Available *2 Units Max |
| AIS Display | Available |
| Radar Overlay on Charts | No |
| Interface | |
| Available ports | NMEA0183x3, NMEA2000 x 1, LAN x 1, HDMI Out x 1, USNB x 1 Contact Closure X 1 |
| Power Supply | |
| Volatage | 12-24vDC |
| Draw | 1.1/0.6A |
| Enviromental Conditions | |
| Ambient Temperature | -15C to +55C |
| Degree of protection | Front Panel IP55, Rear Panel IP22 |
What’s in the Box:
- RDP160-E Color LCD Display
- Sun Cover
- Power Cable
- Cable tie
- Flush Mount
- Documentation
- Fuse FGBO-A 250V 2 A PBF
- Tapping Screw 5×20 SUS304 x 4
- Cable Tie x 4
- F Mounting Sponge 10H x 2
- F Mounting Sponge 10V x 2
- Mounting Bracket and Knobs
