Description

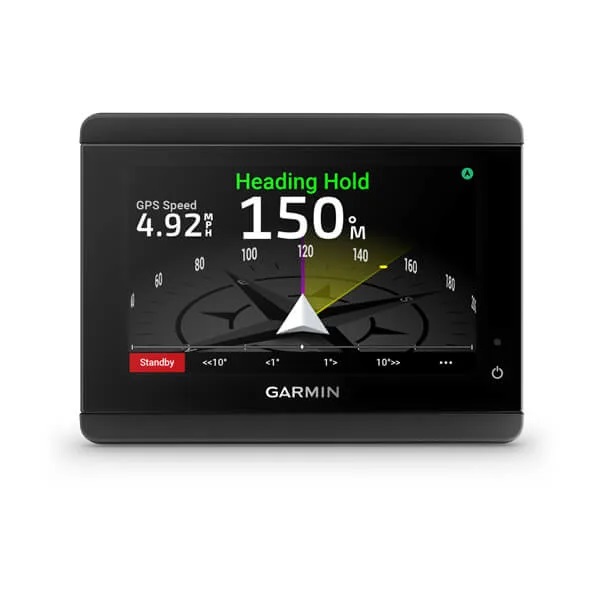

Garmin GHC™ 50 Marine Autopilot Instrument
Model: 010-02731-00
- A 5 in touchscreen interface with a bright display. Call it navigating with a simple touch.
- Sleek. That’s the look you get with the instrument’s edge-to-edge glass design.
- Share settings with your Garmin MFDs, and watch your integrated system come to life.
- From the Garmin Marine Network (GMN) to wireless connectivity, there are many ways to connect to your autopilot.
- Control your boat your way with wired or wireless remote-controlled options.
When you’re ready to discover paradise, the GHC 50 autopilot instrument helps you navigate with ease – wherever the waters take you.
The bright 5 in WVGA touchscreen not only looks good; its anti-glare display makes navigation simple and hassle free.
With a premium industrial design and edge-to-edge glass display, the GHC 50 autopilot instrument aligns perfectly with your high-end GPSMAP® chartplotters, creating a stunning look for your helm.
The choice is yours – control your autopilot instrument via wire or a wireless remote for a navigation experience that works best for you.
If you have multiple compatible Garmin devices on your boat, you can share information among them for a more integrated marine system.
GHC 50 works with all GHP™ Reactor autopilots, select quatix® multisport marine smartwatches, the Garmin autopilot remote and GRID™ 20 remote.
If used as a stand-alone autopilot, wireless connectivity only provides software updates; use the Garmin Marine Network for sharing settings and other connected features.
Specifications
| General | |
| Dimensions without sun cover (H x W x D) | 4.13 in x 5.51 in x 2.01 in |
| Dimensions with sun cover (H x W x D) | 4.45 in x 5.67 in x 2.20 in |
| Weight | 11.57 oz (328 g) |
| Display type | WVGA touchscreen |
| Display resolution | 800 x 480 pixels |
| Water rating | IPX7 |
| Mounting options | Flat or flush |
| Connections | |
| NMEA 2000 ports | 1 |
| Garmin Marine Network ports | 1 |
| Wireless | ANT+® connectivity |
| Electrical | |
| Power input | 9 to 32 Vdc |
| Typical current draw at 12 Vdc | 220 mA |
| Maximum current draw at 12 Vdc | 400 mA |
| Maximum power usage at 10 Vdc | 4.9 W |
What’s in the Box:
- GHC™ 50
- Black trim piece snap cover
- Protective cover
- Flush mount gasket and hardware
- Garmin Marine Network cable
- Garmin Marine Network adapter cable
- NMEA 2000® drop cable
- NMEA 2000 T-connectors and terminators
- Documentation
